VACUU·VIEW
SKU: 20683220
$1,914.00
VACUU·VIEW from BRAND (BrandTech Scientific). highest precision in the range from atmosphere down to 0.1 mbar, perfect gauge for all rough vacuum applications
For the monitoring of your vacuum processes in the rough vacuum range, the new vacuum gauges VACUU·VIEW are perfect! Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout.
Key Features
Specifications
| Weight | 0.19 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
| Protection class IEC 60529 | IP 54 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

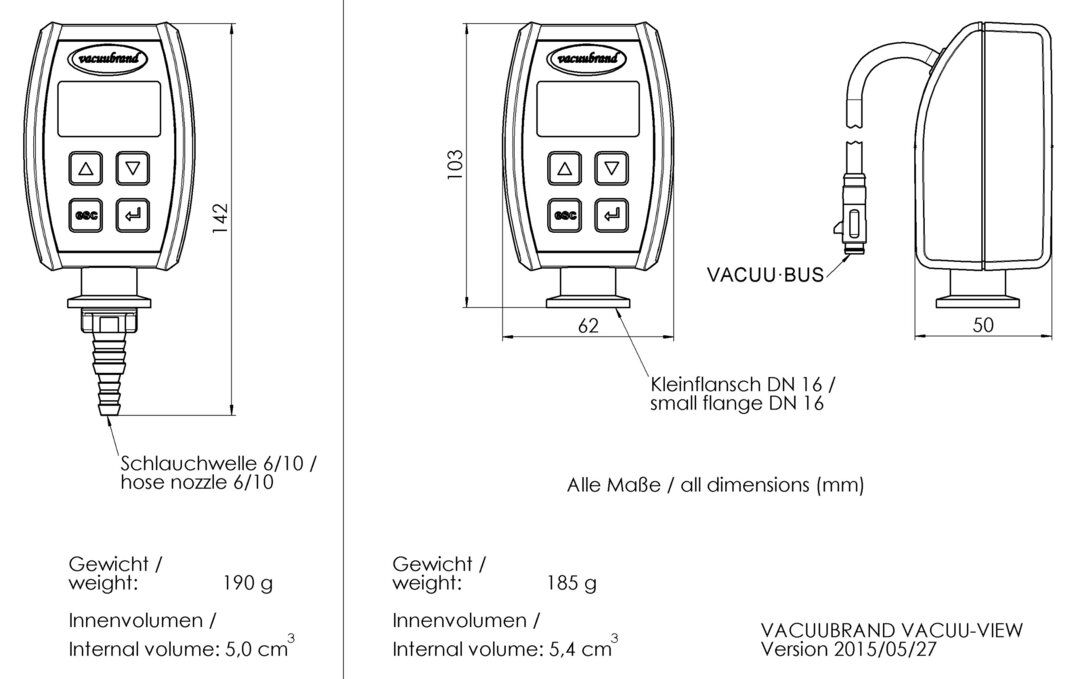

| Dimension B in mm | 62 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Dimension L in mm | 50 mm |
| Dimension H in mm | 103 mm |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Upper measuring limit in mbar/hPa | 1100 mbar |
| Upper measuring limit in torr | 825 torr |
| Lower measuring limit in mbar/hPa | 0.1 |
| Lower measuring limit in torr | 0.075 torr |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr |
| Vacuum sensor | Integr. |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K mbar/hPa/torr /K |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Venting valve | No |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class UL50E | Type 5 |
| Protection class front side IEC 60529 | IP 54 |
| Cable length connection in m | 2 m |
