VACUU·VIEW extended
BrandTech Scientific
VACUU·VIEW extended
SKU: 20683210
$2,200.00
VACUU·VIEW extended from BRAND (BrandTech Scientific). Precision and chemical resistance in an exceptionally wide range from atmosphere down to 10 -3 mbar, o…
For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10<sup>-3</sup> mbar.
Key Features
Specifications
| Weight | 0.19 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Vacuum gauge with integrated vacuum sensors, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
| Protection class IEC 60529 | IP 54 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

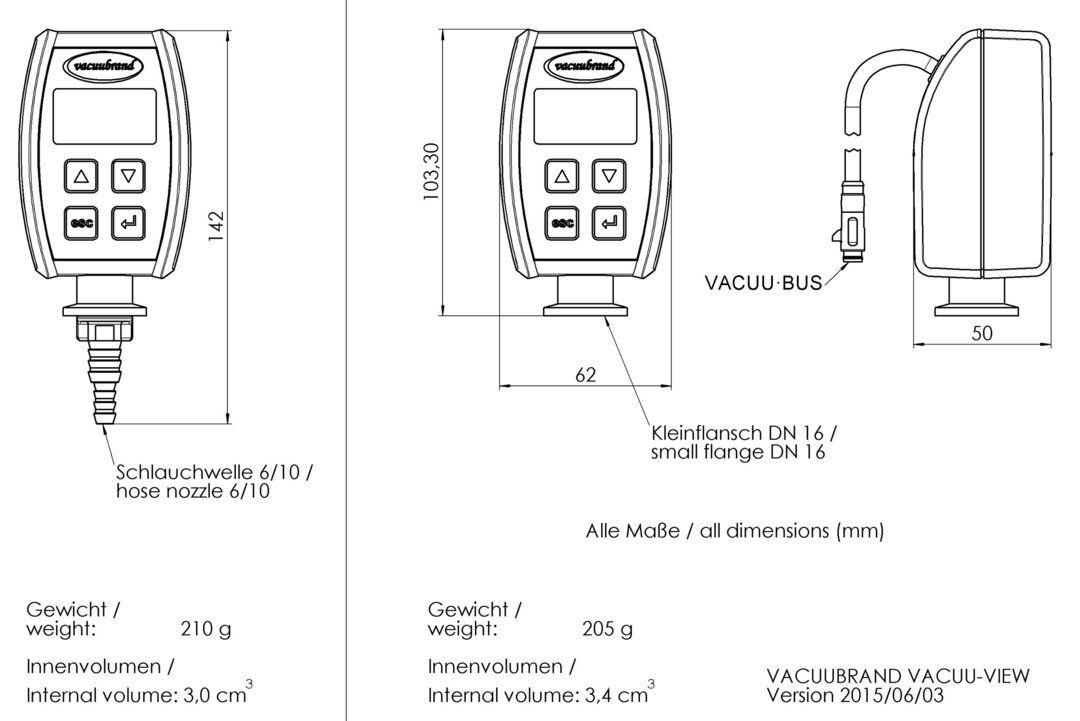

| Dimension B in mm | 62 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Dimension L in mm | 50 mm |
| Dimension H in mm | 103 mm |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Upper measuring limit in mbar/hPa | 1100 mbar |
| Upper measuring limit in torr | 825 torr |
| Lower measuring limit in mbar/hPa | 1 x 10 -3 |
| Lower measuring limit in torr | 1 x 10 -3 torr |
| Measurement principle | Ceramic diaphragm sensor + ceramic jacketed Pirani sensor |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr |
| Vacuum sensor | Integr. |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Venting valve | No |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class UL50E | Type 5 |
| Protection class front side IEC 60529 | IP 54 |
| Cable length connection in m | 2 m |
