RZ 6
BrandTech Scientific
RZ 6
SKU: bt-p14017
$5,050.00
RZ 6 from BRAND (BrandTech Scientific). high flow rates even at vacuum levels approaching ultimate vacuum
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. Various packages including pump, oil mist filter, etc. are available.
Key Features
large oil volume
Long intervals between oil changes
Specifications
| Weight | 17.0 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 12 °C |

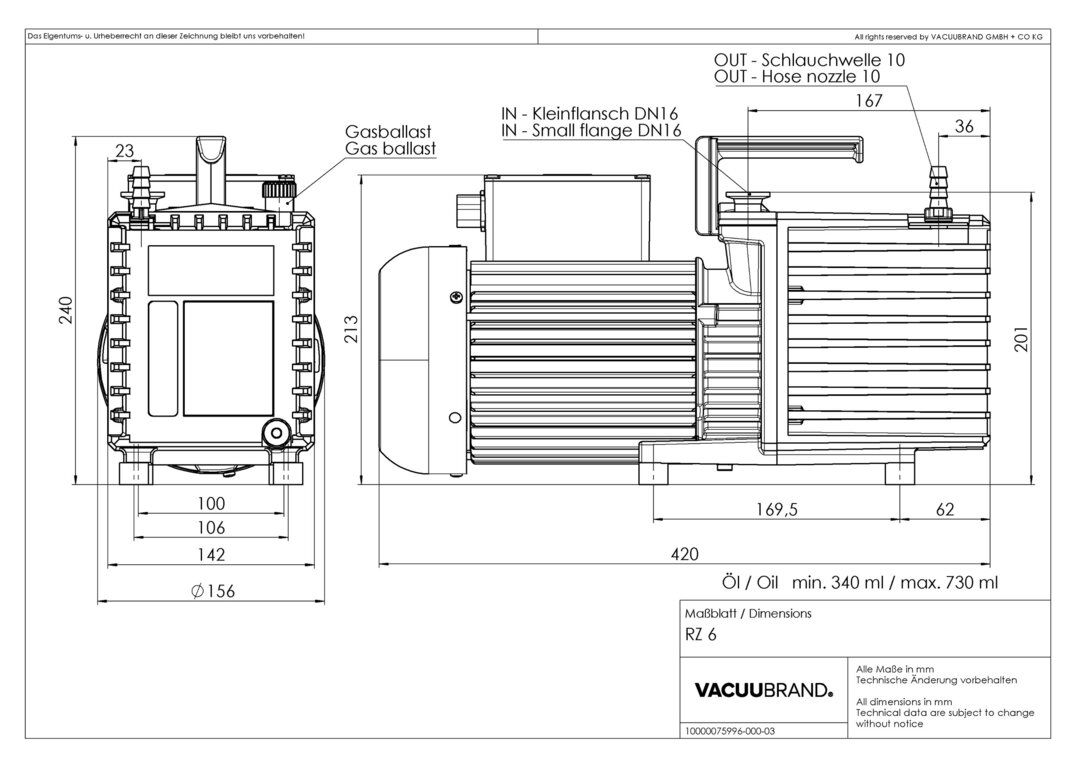

| Dimension B in mm | 156 mm |

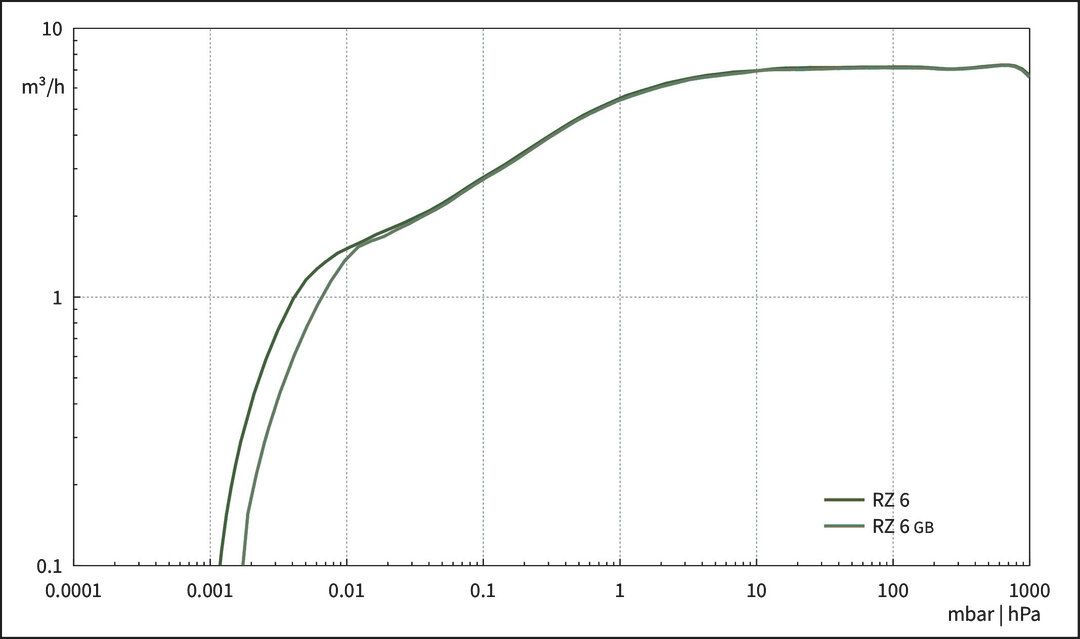

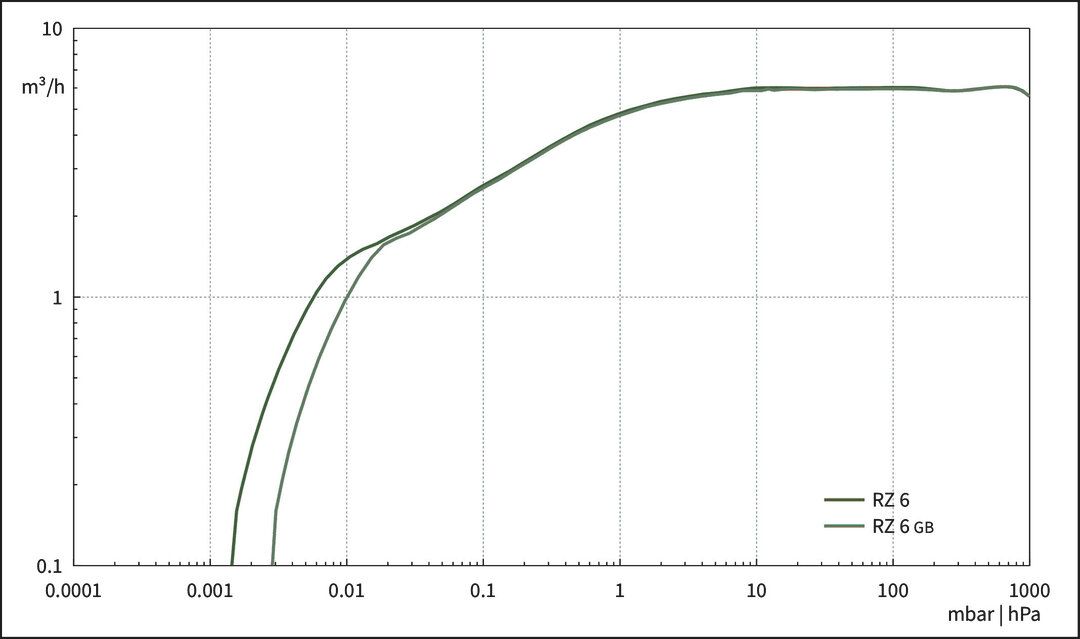

| Max. pumping speed 50 Hz | 5.7 m 3 /h |
| Max. pumping speed 60 Hz | 4.0 cfm |
| Ultimate vacuum | 2 x 10 -3 mbar / 1.5 x 10 -3 torr |
| Ultimate vacuum with gas ballast | 1 x 10 -2 mbar / 0.75 x 10 -2 torr |
| Number of stages | 2 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 16 |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min -1 |
| Dimension L in mm | 420 mm |
| Dimension H in mm | 240 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA |
| NRTL certification | No |
| Rated mains voltage range 1 | 230 V |
| Mains frequency 1 | 50-60 Hz |
| Ultimate partial vacuum (abs.) without gas ballast | 4 x 10 -4 mbar |
| Water vapor tolerance with gas ballast | 40 mbar |
| Oil capacity (B-Oil) min. | 0.34 l |
| Oil capacity (B-Oil) max. | 0.73 l |
