RC 6 from BRAND (BrandTech Scientific). reduced internal corrosion, even when working with corrosive vapors

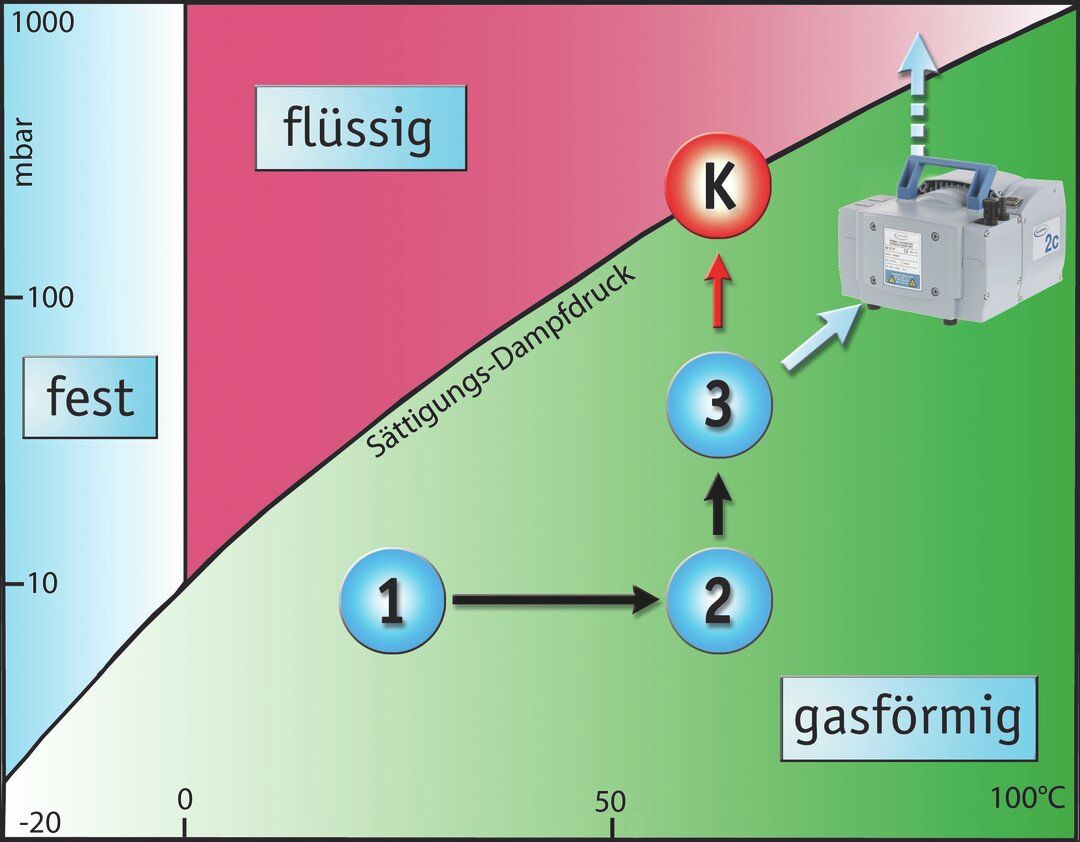

The RC 6 chemistry-HYBRID pump is a combination of a two-stage rotary vane pump and a two-stage chemistry diaphragm pump for optimized corrosion resistance. The diaphragm pump maintains the oil reservoir under vacuum in order to keep the partial pressures of solvent vapors at levels below their condensation points and to reduce largely the concentration of oxygen and corrosive gases. Therefore the RC 6 chemistry-HYBRID pump has a much higher solvent vapor pumping capability and resistance to aggressive gases than conventional rotary vane pumps.
Key Features
most economical solution
In practical operation a cold trap is often no longer necessary
Specifications
| Weight | 25 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use after oil filling (bottle 0.5 l enclosed), with manual. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 12 °C |

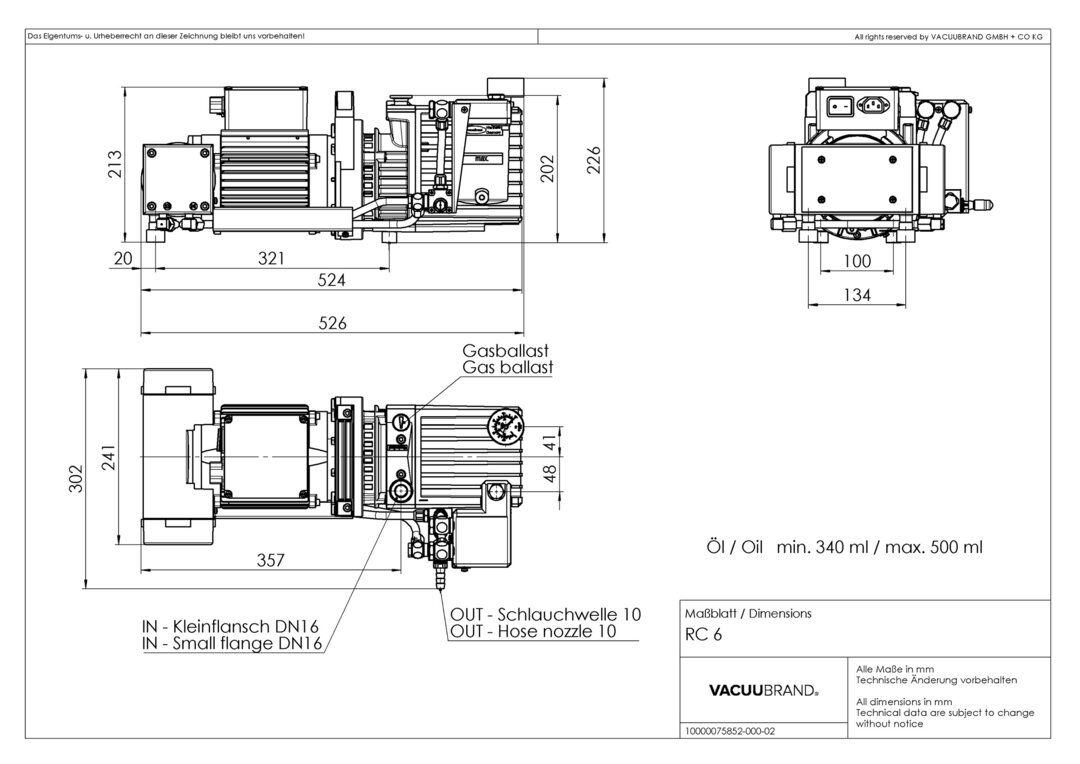

| Dimension B in mm | 302 mm |

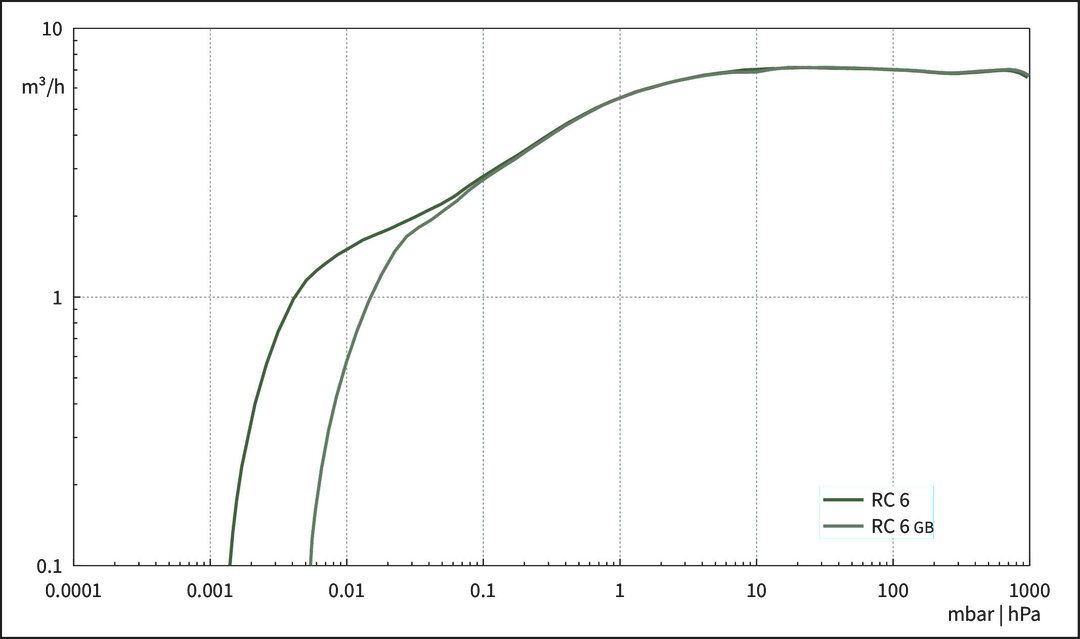

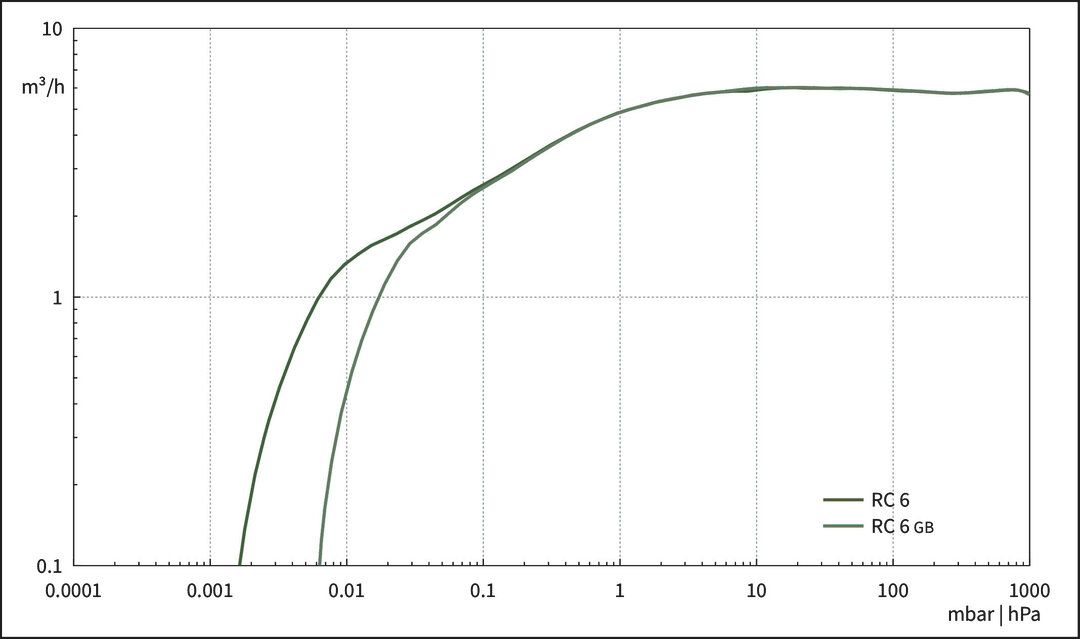

| Max. pumping speed 50 Hz | 5.9 m 3 /h |
| Max. pumping speed 60 Hz | 4.1 cfm |

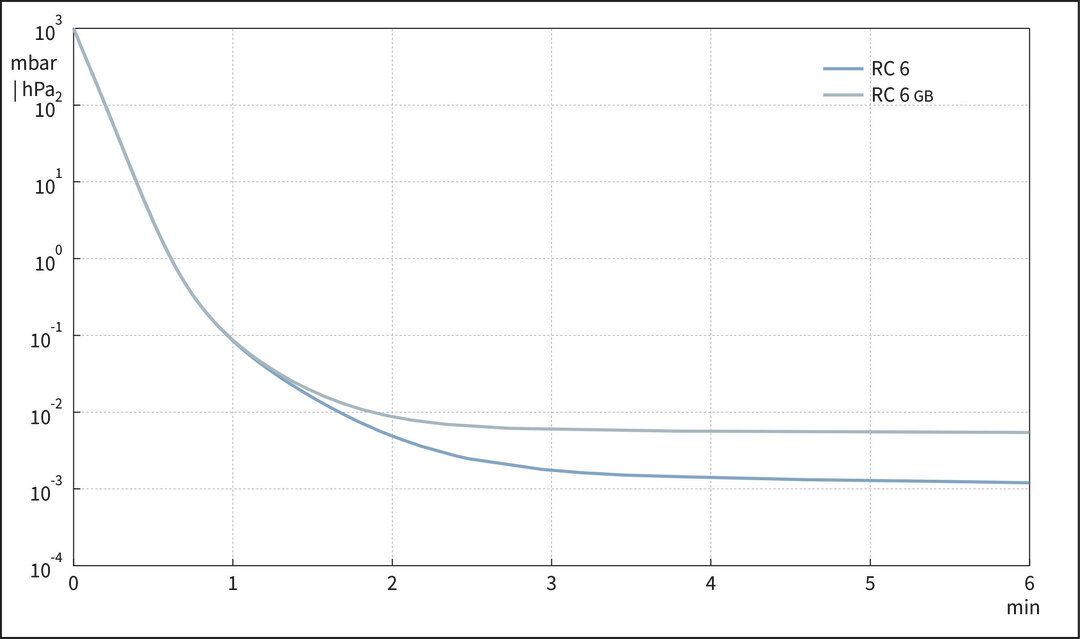

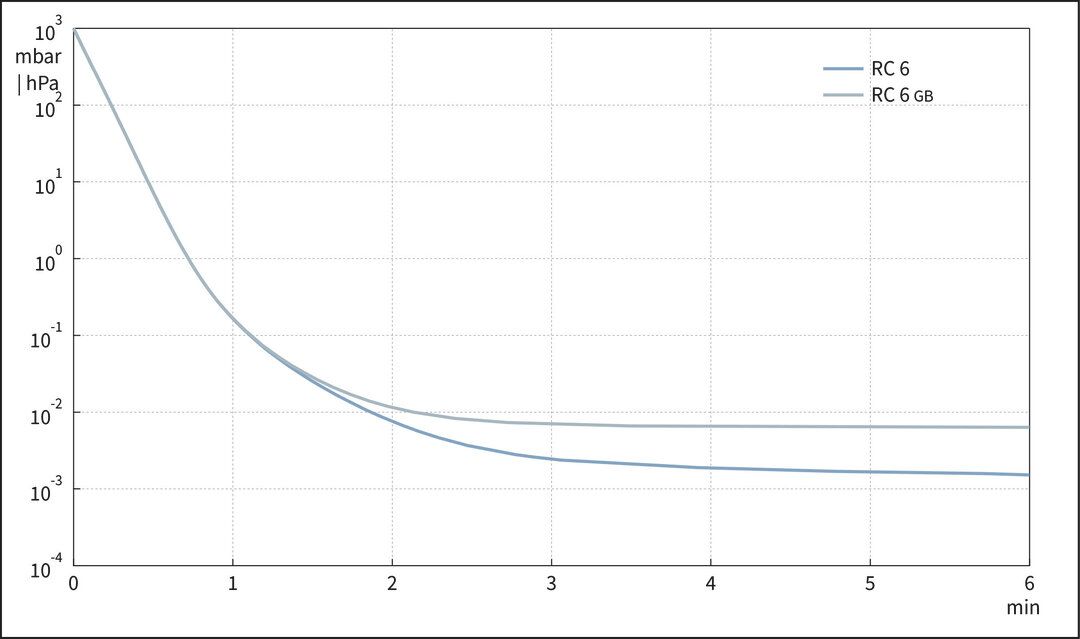

| Ultimate vacuum | 2 x 10 -3 mbar / 1.5 x 10 -3 torr |
| Ultimate vacuum with gas ballast | 1 x 10 -2 mbar / 0.75 x 10 -2 torr |
| Number of heads | 2 |
| Number of stages | 2 + 2 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 16 |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.3 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min -1 |
| Dimension L in mm | 526 mm |
| Dimension H in mm | 226 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA |
| NRTL certification | No |
| Rated mains voltage range 1 | 230 V |
| Mains frequency 1 | 50-60 Hz |
| Ultimate partial vacuum (abs.) without gas ballast | 4 x 10 -4 mbar |
| Water vapor tolerance with gas ballast | >> 40 mbar |
| Oil capacity (B-Oil) min. | 0.34 l |
| Oil capacity (B-Oil) max. | 0.50 l |
