PC 3001 VARIOpro
PC 3001 VARIOpro

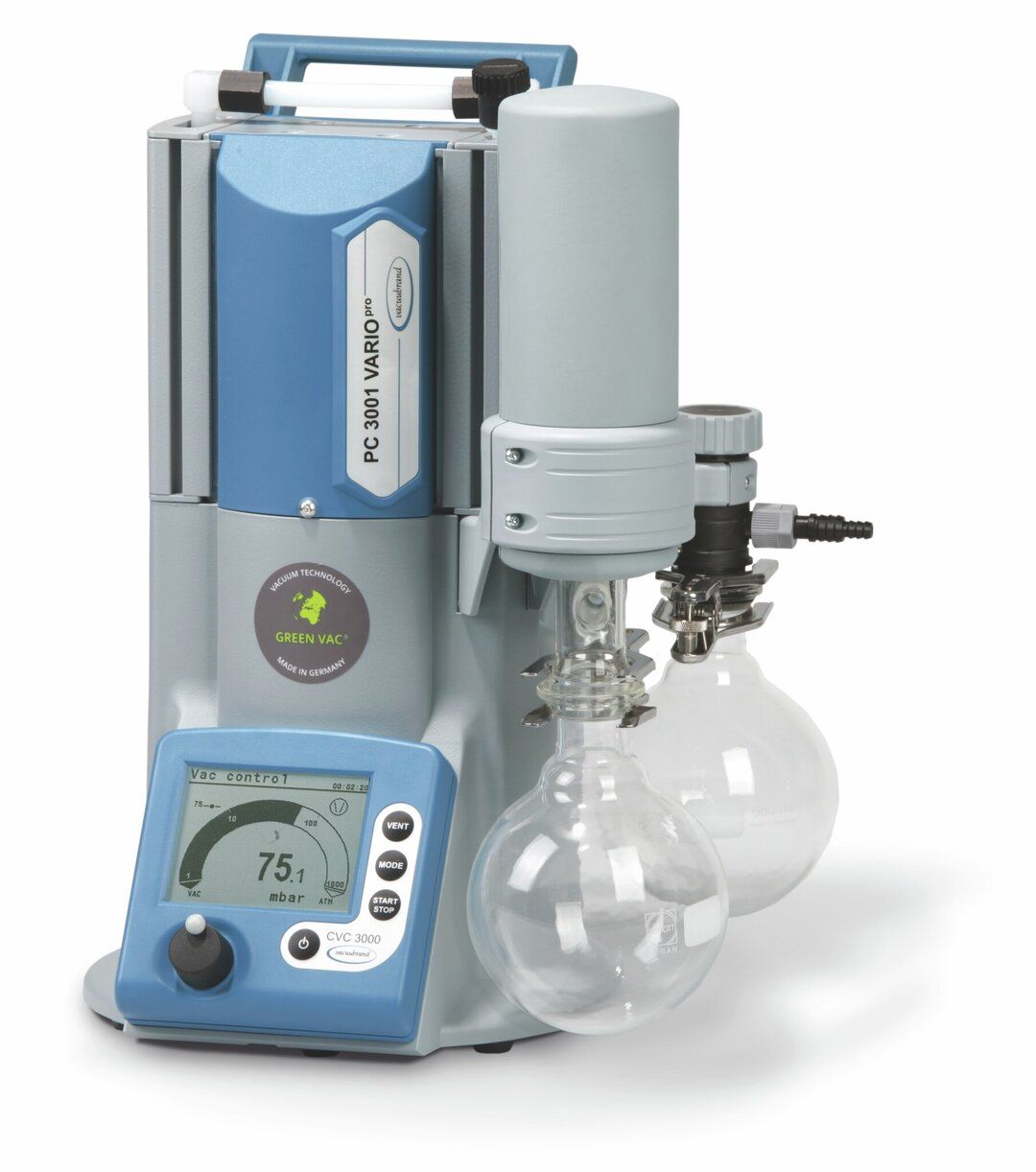

This VARIO® chemistry pumping unit optimizes vacuum conditions automatically by precisely and continuously adjusting the diaphragm pump´s motor speed. Thanks to the motor speed control the pump operates only when vacuum is needed, saving energy and reducing maintenance. The integrated vacuum controller enables fully automatic evaporation at a push of a button. Low space requirements, light weight and low operational noise contribute further to this unit’s flexibility and popularity for laboratory use. The PC 3001 VARIO<sup>pro</sup> is ideal for vacuum applications with high boiling point solvents. The inlet separator, made of glass with a protective coating, prevents droplets and particles from entering the pump. The highly efficient insulated exhaust vapor condenser has a very compact design and provides near-100-percent recovery of solvents.
Key Features
Specifications
| Weight | 7.7 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
| Vacuum controller | CVC 3000 |
| Protection class IEC 60529 | IP 20 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

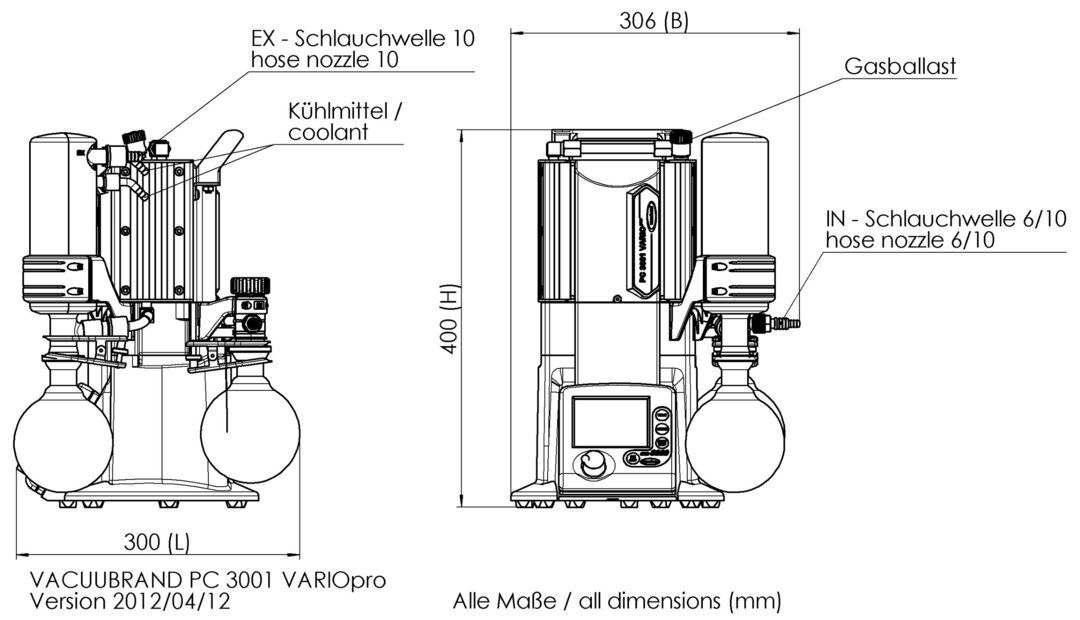

| Dimension B in mm | 306 mm |

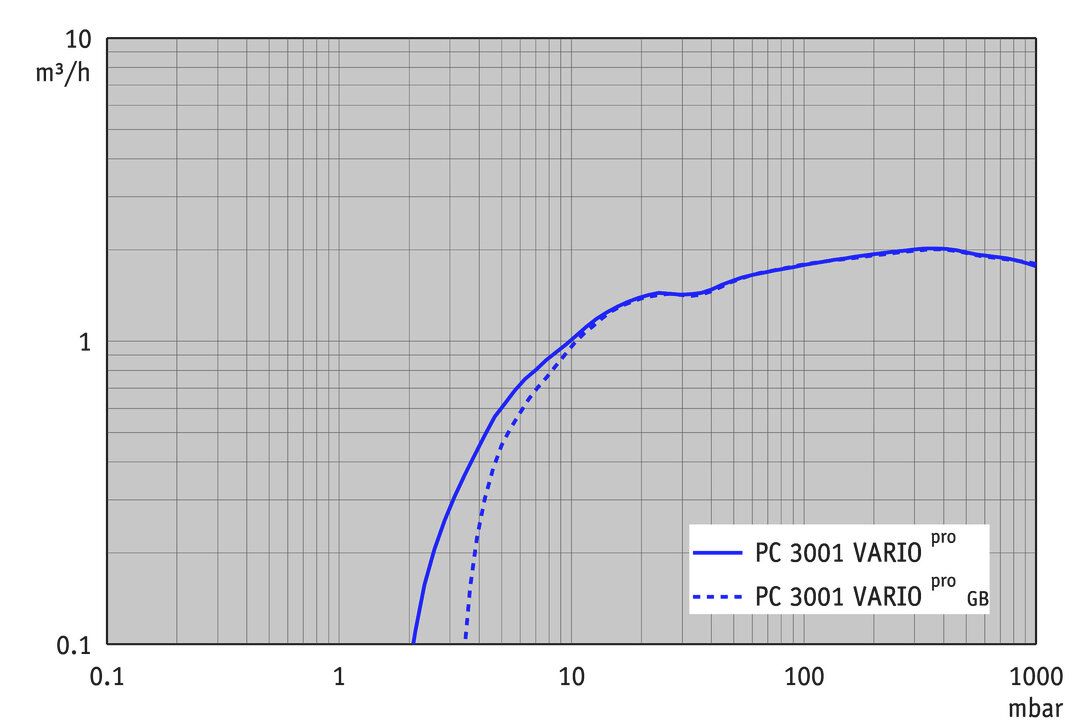

| Max. pumping speed 50 Hz | 2 m 3 /h |
| Max. pumping speed 60 Hz | 1.18 cfm |
| Ultimate vacuum | 2 mbar / 1.5 torr |
| Ultimate vacuum with gas ballast | 4 mbar / 3 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 6-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.16 kW |
| Dimension L in mm | 300 mm |
| Dimension H in mm | 400 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 42 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Rated mains voltage range 1 | 200-230 V |
| Mains frequency 1 | 50-60 Hz |
| Rated mains voltage range 2 | 100-120 V |
| Mains frequency 2 | 50-60 Hz |
| Coolant connection | 2 x hose nozzle DN 6-8 mm |
