PC 3001 VARIO select EK Peltronic
PC 3001 VARIO select EK Peltronic
The PC 3001 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process control. The VARIO motor speed control also makes the pump whisper quiet and provides for exceptionally long maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. The included emission condenser Peltronic works without any cooling media like water or dry ice.
Key Features
Specifications
| Weight | 11.8 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pumping unit with included Peltronic emission condenser, with operating manual, without power cable. |
| Vacuum controller | VACUU·SELECT |
| Protection class IEC 60529 | IP 20 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

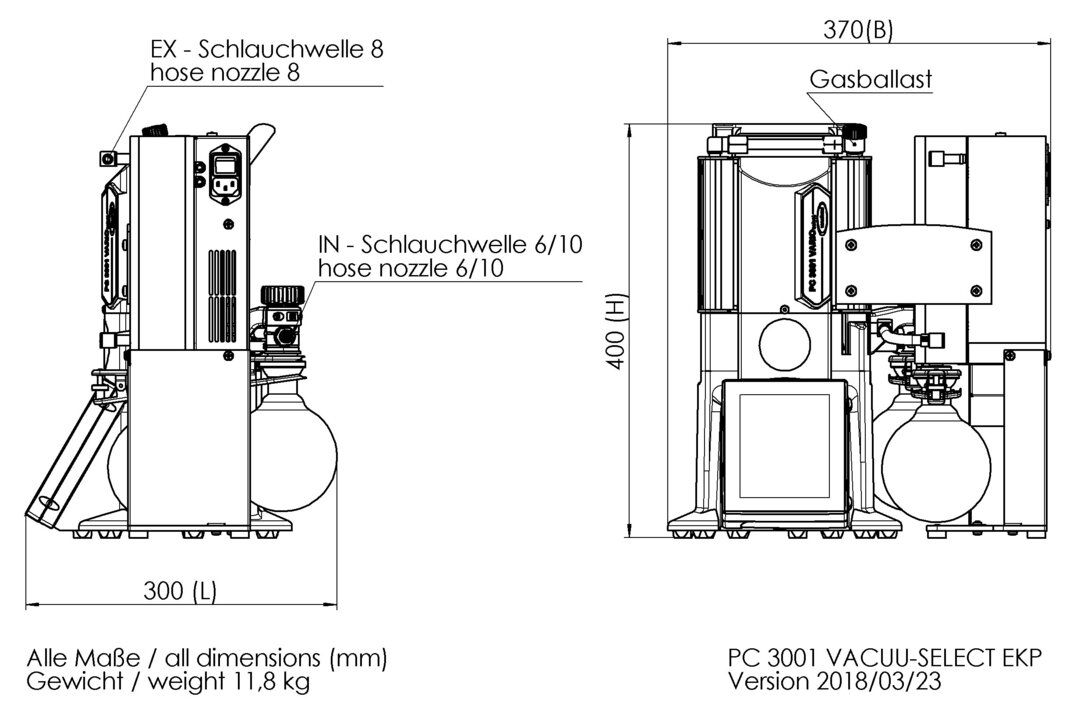

| Dimension B in mm | 370 mm |

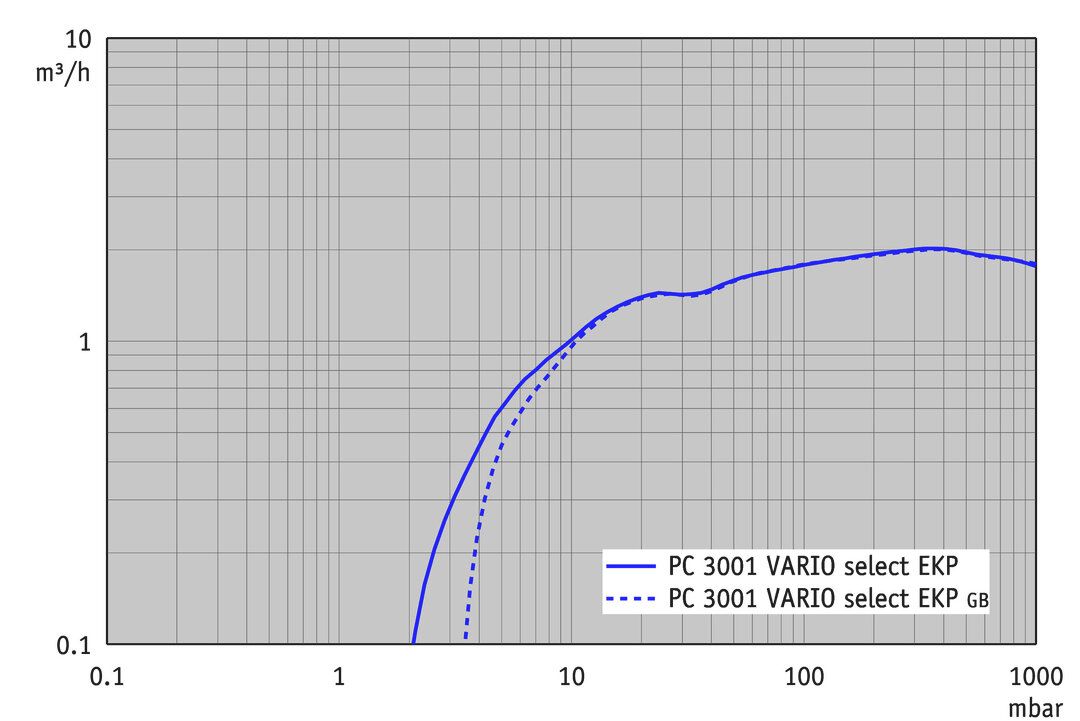

| Max. pumping speed 50 Hz | 2 m 3 /h |
| Max. pumping speed 60 Hz | 1.18 cfm |

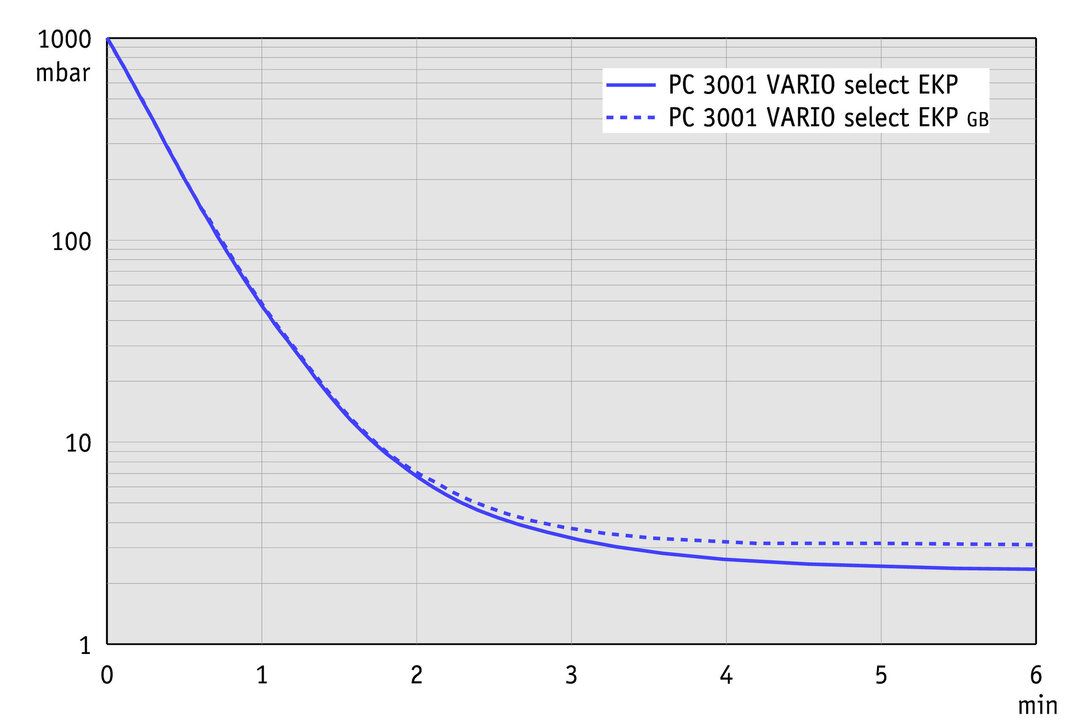

| Ultimate vacuum | 2.0 mbar / 1.5 torr |
| Ultimate vacuum with gas ballast | 4 mbar / 3 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 6-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.16 kW |
| Dimension L in mm | 300 mm |
| Dimension H in mm | 400 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 42 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | No |
| Rated mains voltage range 1 | 200-230 V |
| Mains frequency 1 | 50-60 Hz |
| Rated mains voltage range 2 | 100-120 V |
| Mains frequency 2 | 50-60 Hz |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
