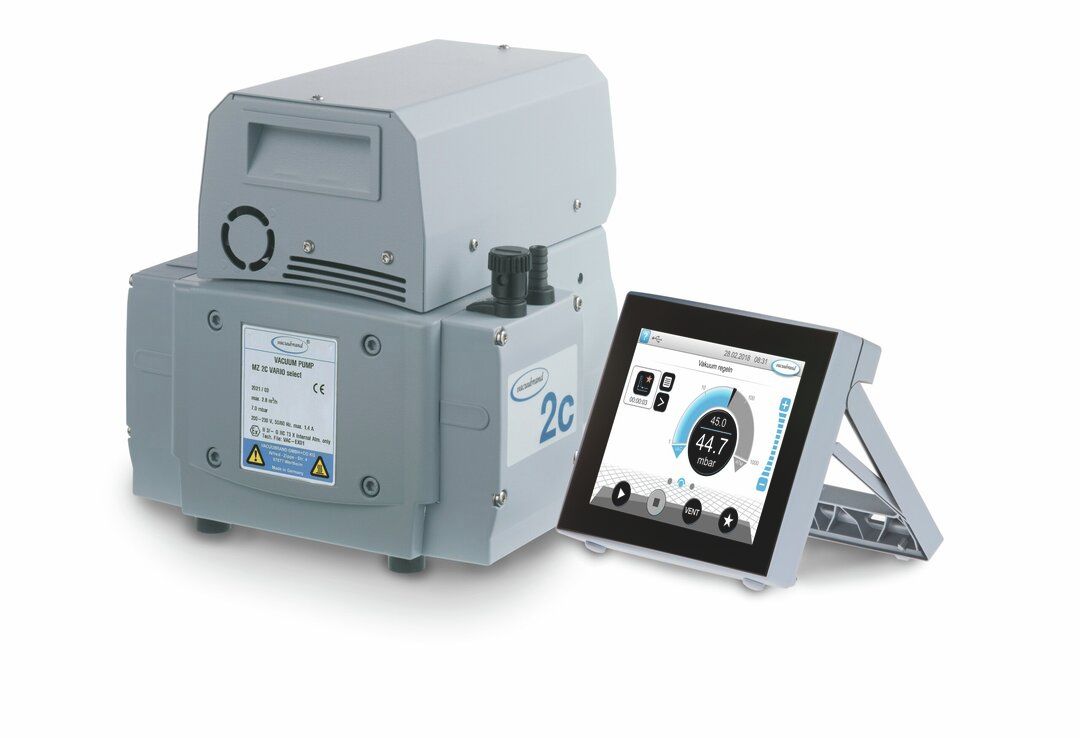

MZ 2C VARIO select
BrandTech Scientific
MZ 2C VARIO select
SKU: bt-p6416
Contact for pricing
MZ 2C VARIO select from BRAND (BrandTech Scientific). VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies wor…
The MZ 2C VARIO select pump is an excellent solution for labs working with most common solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller detects the boiling pressure and automatically adjusts the pump to maintain process control. On-demand motor speed control yields not only improved vacuum control, but it also results in unparalleled service intervals for wear parts like diaphragms and valves.
Key Features
Specifications
| Weight | 14.3 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, with manual. |
| Vacuum controller | VACUU·SELECT |
| Protection class IEC 60529 | IP 20 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

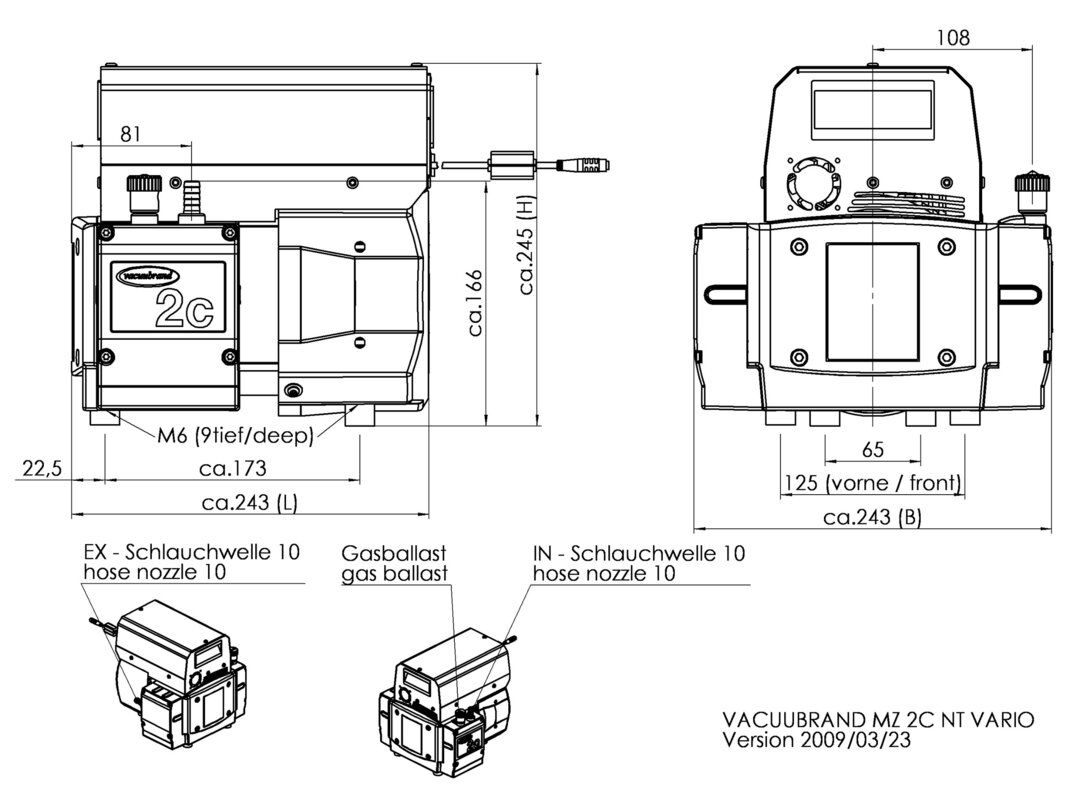

| Dimension B in mm | 243 mm |

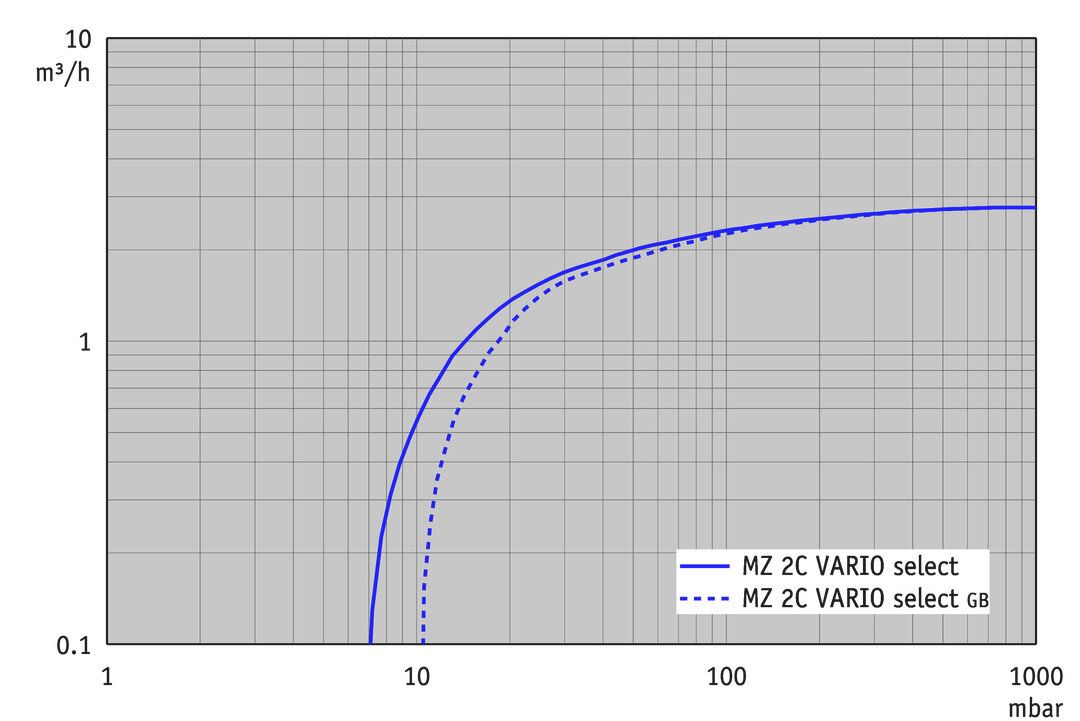

| Max. pumping speed 50 Hz | 2.8 m 3 /h |
| Max. pumping speed 60 Hz | 1.65 cfm |
| Ultimate vacuum | 7 mbar / 5 torr |
| Ultimate vacuum with gas ballast | 12 mbar / 9 torr |
| Number of heads | 2 |
| Number of stages | 2 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.53 kW |
| Dimension L in mm | 243 mm |
| Dimension H in mm | 245 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 43 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | No |
| Rated mains voltage range 1 | 200-230 V |
| Mains frequency 1 | 50-60 Hz |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
