MV 10 NT
BrandTech Scientific
MV 10 NT
SKU: bt-p4921
Contact for pricing
MV 10 NT from BRAND (BrandTech Scientific). contamination-free pumping and evacuation
Four-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases when the need is to reach fractional millibar ultimate vacuums. All parts in contact with pumped vapors or gases are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. These pumps provide the advantageous combination of high pumping speed with an extraordinary good ultimate vacuum down to 0.5 mbar. The highly flexible, fabric-reinforced double diaphragms made of FKM offer extended operating life. Eight-cylinder NT pumps features quiet operation, smooth and easy to clean surfaces.
Key Features
Specifications
| Weight | 30.2 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, silencer, with manual. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

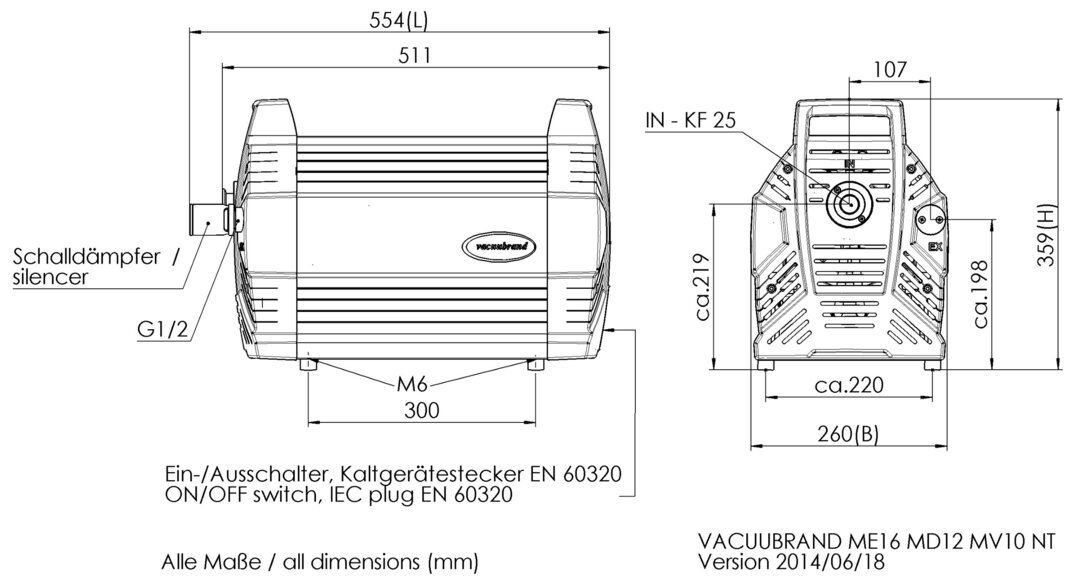

| Dimension B in mm | 260 mm |

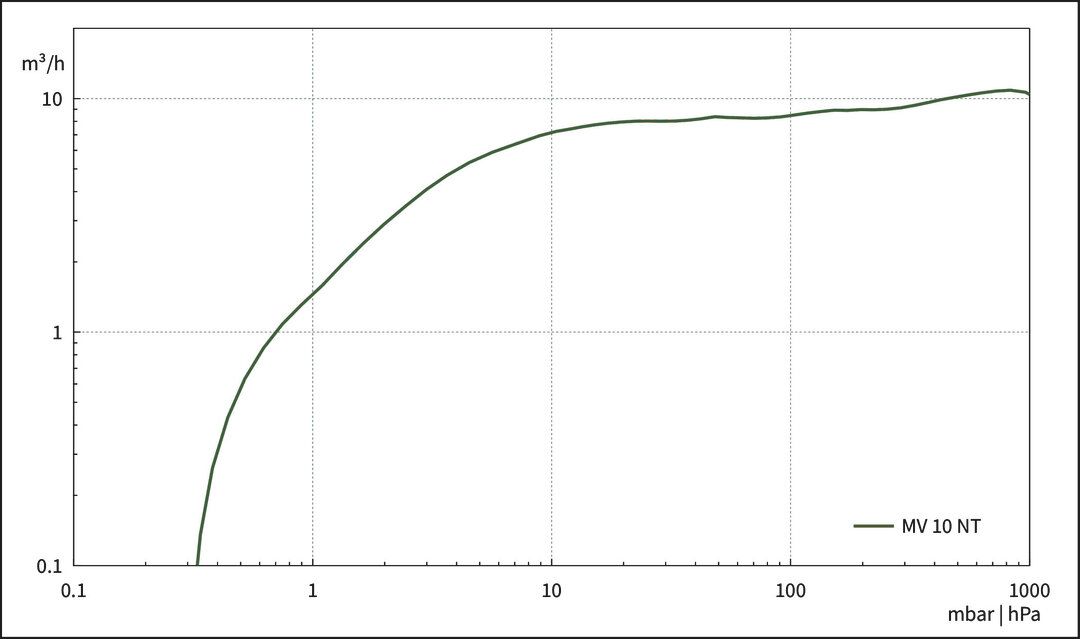

| Max. pumping speed 50 Hz | 10.4 m 3 /h |
| Max. pumping speed 60 Hz | 6.1 cfm |

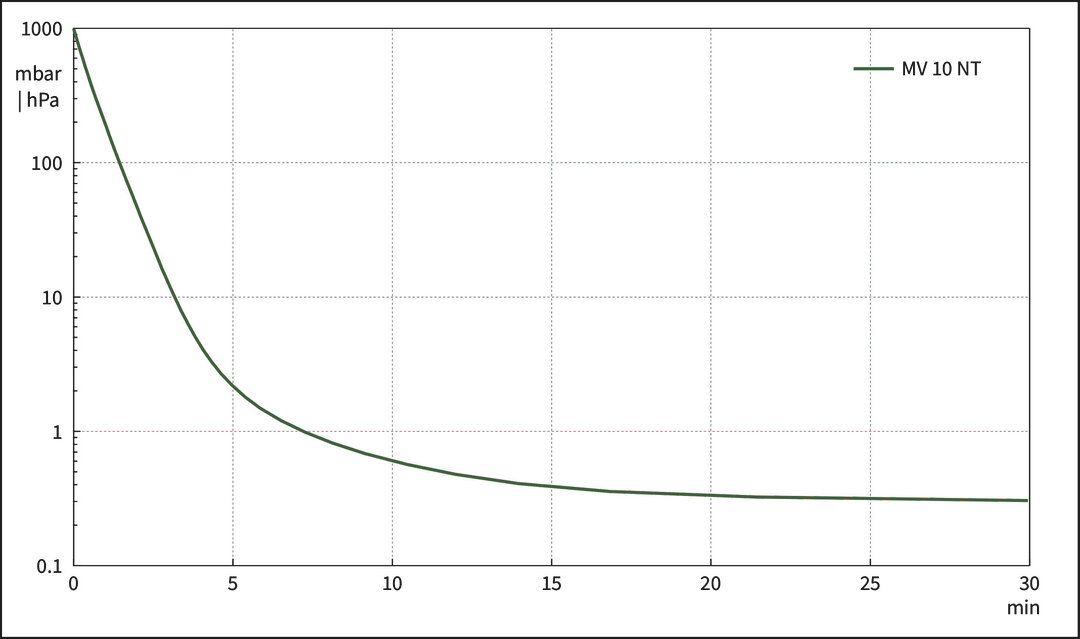

| Ultimate vacuum | 0.5 mbar / 0.38 torr |
| Number of heads | 8 |
| Number of stages | 4 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 25 |
| Outlet connection | G1/2" |
| Rated motor power | 0.53 kW |
| Rated motor speed at 50/60 Hz | 1650 min -1 |
| Dimension L in mm | 554 mm |
| Dimension H in mm | 359 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | No |
| Rated mains voltage range 1 | 200-230 V |
| Mains frequency 1 | 50-60 Hz |
