ME 4C NT +2AK
BrandTech Scientific
ME 4C NT +2AK
SKU: 22614080
Contact for pricing
ME 4C NT +2AK from BRAND (BrandTech Scientific). outstanding chemical resistance and superior vapor tolerance
This chemistry vacuum system provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. It is therefore ideal for evacuating and pumping large amounts of gases and vapors. It has a wide range of applications in chemical, biological and pharmaceutical laboratories if condensation of solvent vapors at the outlet is not necessary. Typical applications are vacuum ovens, single and multiple filtrations, as well as concentration of solvents with low boiling points. The separator at the inlet (AK) is made of glass with protective coating and retains particles and liquid droplets. The separator at the outlet collects condensate, avoids condensate backflow towards the pump and makes the pump whisper-quiet.
Key Features
Specifications
| Weight | 13.6 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pumping unit completely mounted, ready for use, with manual, with dual voltage motor. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

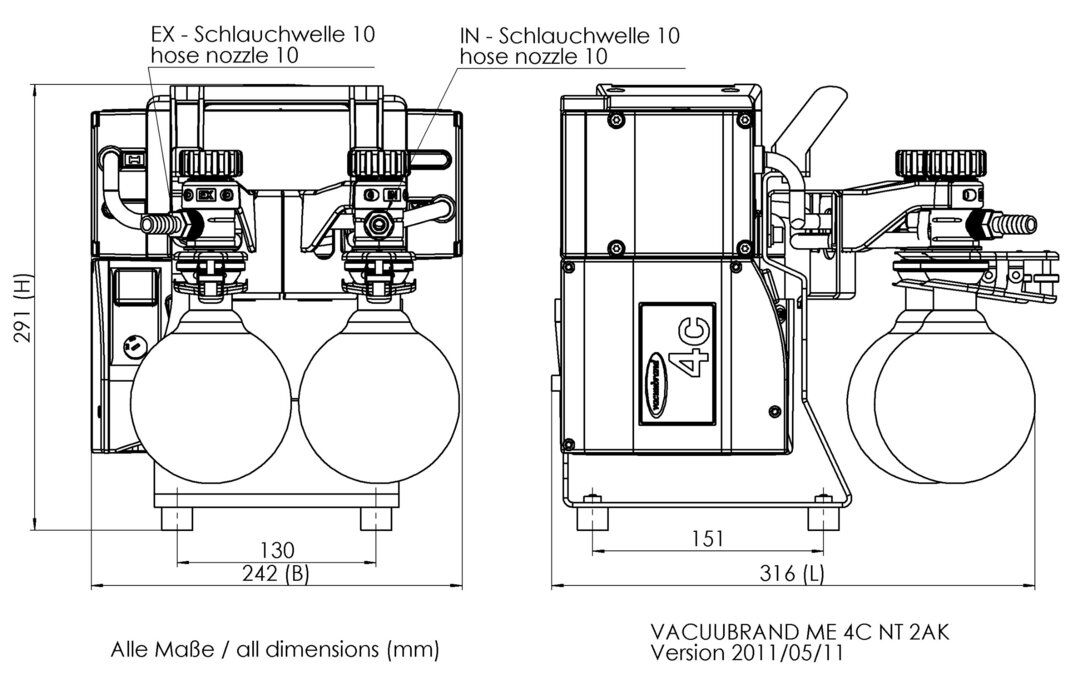

| Dimension B in mm | 242 mm |
| Max. pumping speed 50 Hz | 3.9 m 3 /h |
| Max. pumping speed 60 Hz | 2.6 cfm |
| Ultimate vacuum | 70 mbar / 52 torr |
| Number of heads | 2 |
| Number of stages | 1 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min -1 |
| Dimension L in mm | 316 mm |
| Dimension H in mm | 291 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Rated mains voltage range 1 | 200-230 V |
| Mains frequency 1 | 50-60 Hz |
| Rated mains voltage range 2 | 100-115 V |
| Rated mains voltage range 3 | 120 V |
| Mains frequency 2 | 50-60 Hz |
| Mains frequency 3 | 60 Hz |
