ME 2 NT — bt-p4704
BrandTech Scientific
ME 2 NT — bt-p4704
SKU: bt-p4704
$2,110.00
ME 2 NT. One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors at low vacuum requirement. In contrast to w…
One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors at low vacuum requirement. In contrast to waterjet pumps they do not consume water and therefore do not produce any contaminated waste water in daily use. Typical applications are vacuum ovens, filtrations and multi-port manifolds for medium throughput, as well as pumping of gases and oil-free evacuation in general. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar.
Key Features
Specifications
| Weight | 10.2 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, silencer, hose nozzle, with manual. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

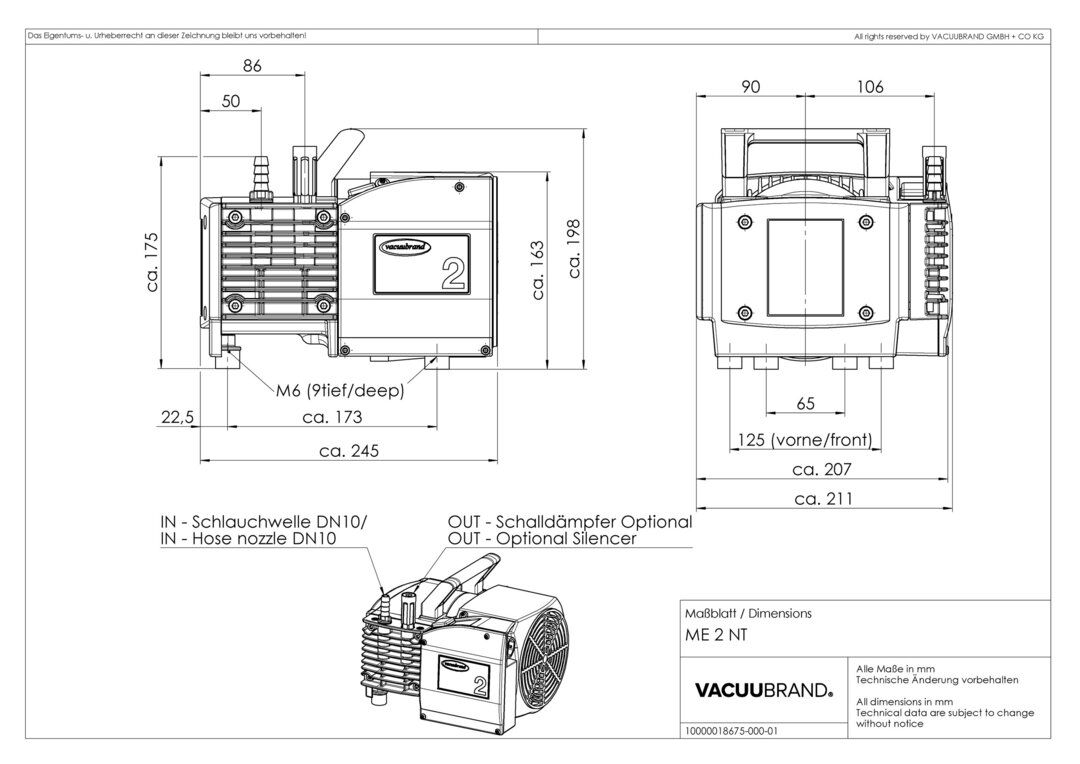

| Dimension B in mm | 211 mm |

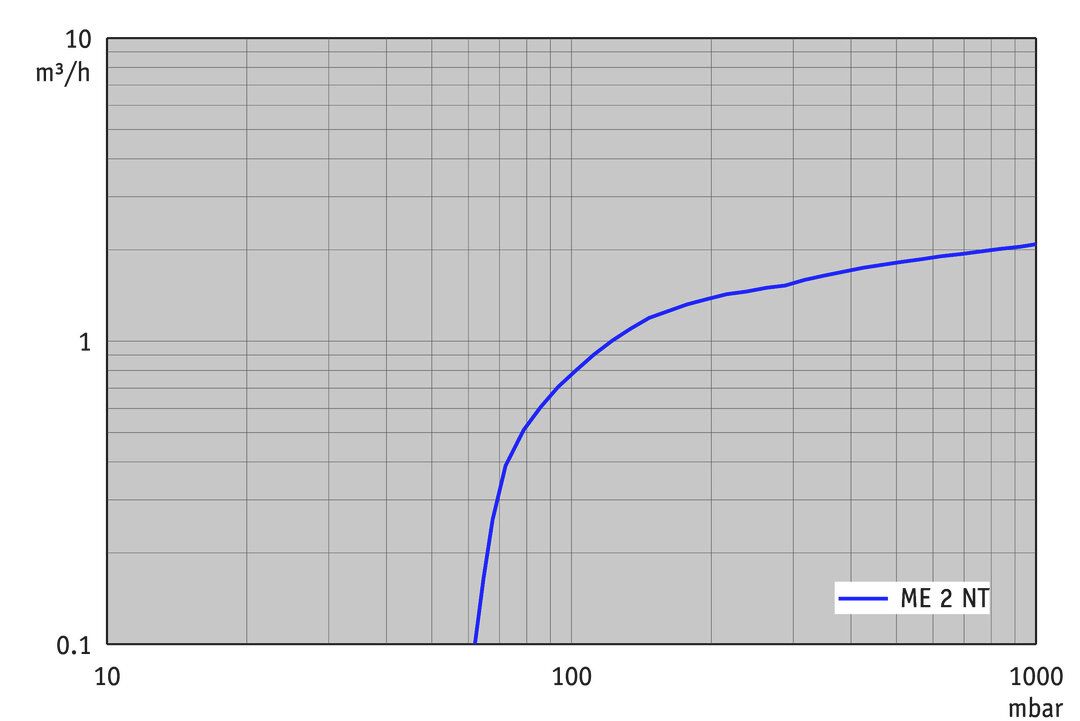

| Max. pumping speed 50 Hz | 2 m 3 /h |

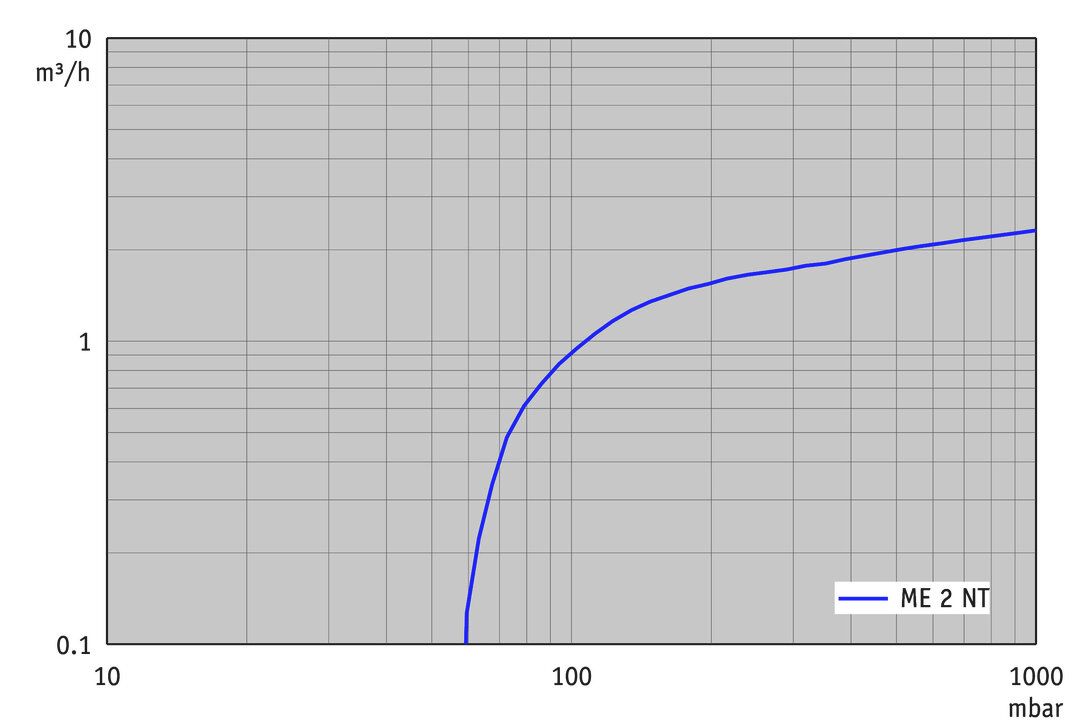

| Max. pumping speed 60 Hz | 1.4 cfm |
| Ultimate vacuum | 70 mbar / 52 torr |
| Number of heads | 1 |
| Number of stages | 1 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 2 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | G1/4" |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min -1 |
| Dimension L in mm | 245 mm |
| Dimension H in mm | 198 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Rated mains voltage range 1 | 230 V |
| Mains frequency 1 | 50-60 Hz |
