ME 16 NT VARIO select
ME 16 NT VARIO select
These oil-free diaphragm pumps are especially powerful pumps for evacuation and pumping of non aggressive gases. The one-stage design provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All parts in contact with pumped media are made of aluminum and selected plastics allowing a wide range of applications for non-corrosive gases. It provides precise vacuum control and consists always of the pump and the VACUU·SELECT vacuum controller with external gauge head. The highly flexible, fabric-reinforced double diaphragm made of FKM offers extended operating life that increases significantly in motor speed controlled operation. The eight-cylinder pump ME 16 NT VARIO features exceptionally high pumping speed, low vibration and a very compact design with smooth and easy-to-clean surfaces.
Key Features
Specifications
| Weight | 31.6 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, silencer, with manual. |
| Vacuum controller | VACUU·SELECT |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

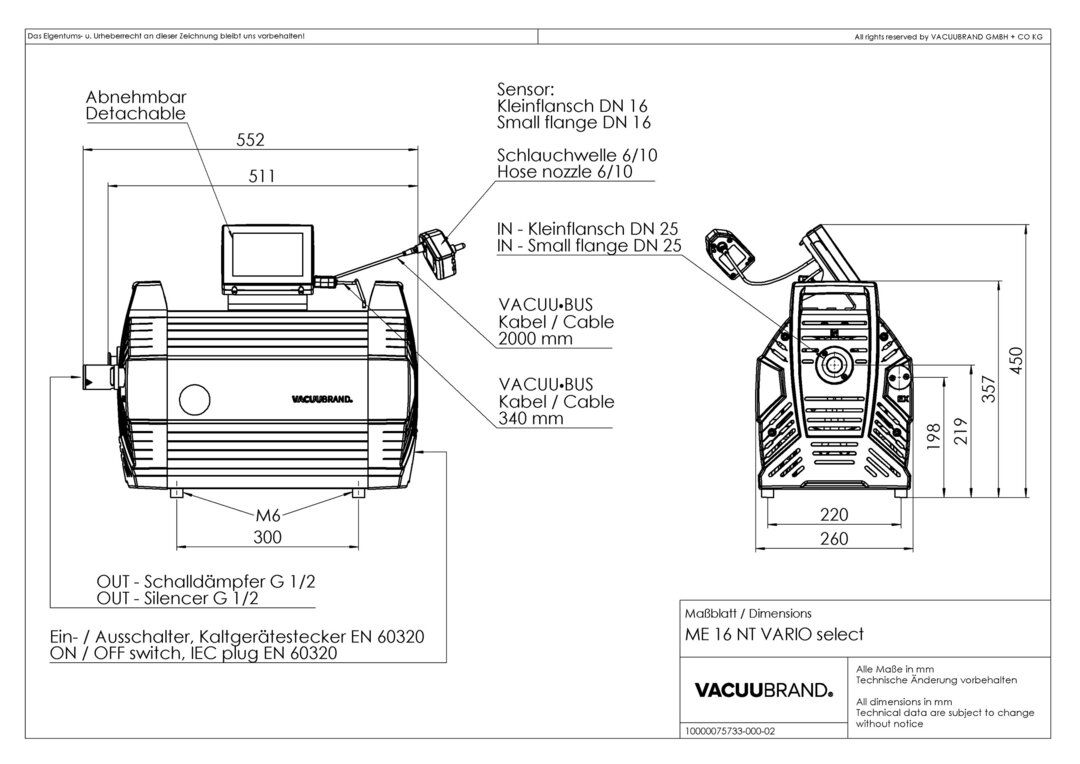

| Dimension B in mm | 260 mm |

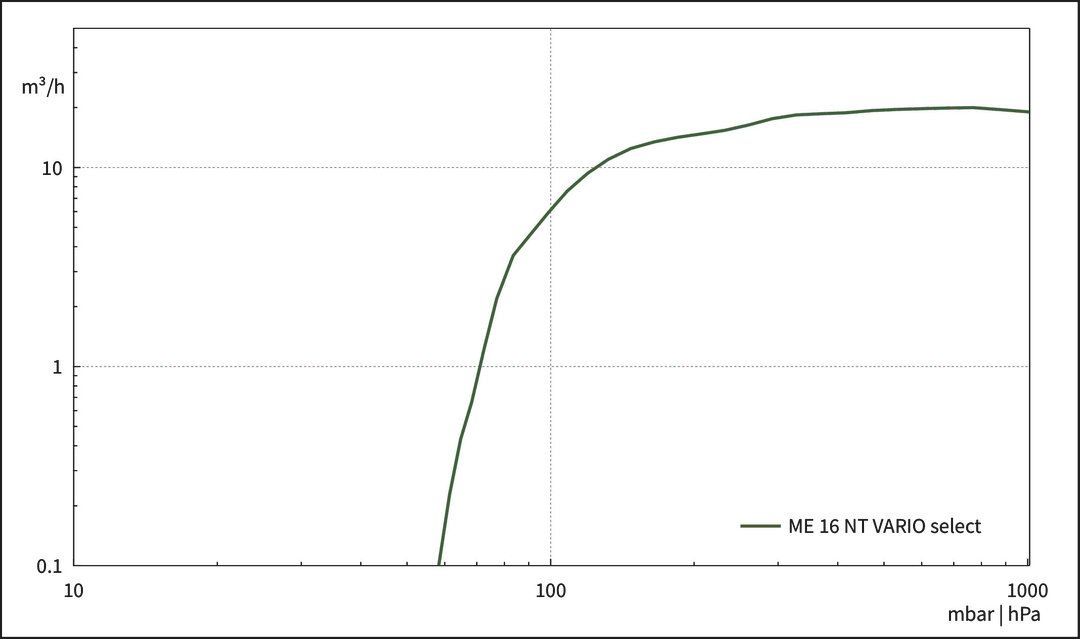

| Max. pumping speed 50 Hz | 19 m 3 /h |
| Max. pumping speed 60 Hz | 11.2 cfm |
| Ultimate vacuum | 70 mbar / 53 torr |
| Number of heads | 8 |
| Number of stages | 1 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 25 |
| Outlet connection | G1/2" |
| Rated motor power | 0.53 kW |
| Dimension L in mm | 552 mm |
| Dimension H in mm | 450 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 54 dBA |
| NRTL certification | No |
| Rated mains voltage range 1 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
