ME 16 NT
BrandTech Scientific
ME 16 NT
SKU: bt-p4911
Contact for pricing
ME 16 NT from BRAND (BrandTech Scientific). contamination-free pumping and evacuation
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. The one-stage design provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All parts in contact with pumped media are made of aluminum and selected plastics allowing a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragms made of FKM are ideal for extended operating life. These pumps are particularly powerful and offer large volume flow. The eight-cylinder pump ME 16 NT features exceptionally high pumping speed, low vibration and a very compact design with smooth and easy-to-clean surfaces.
Key Features
Specifications
| Weight | 30.2 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, silencer, with manual. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |
| Dimension B in mm | 260 mm |

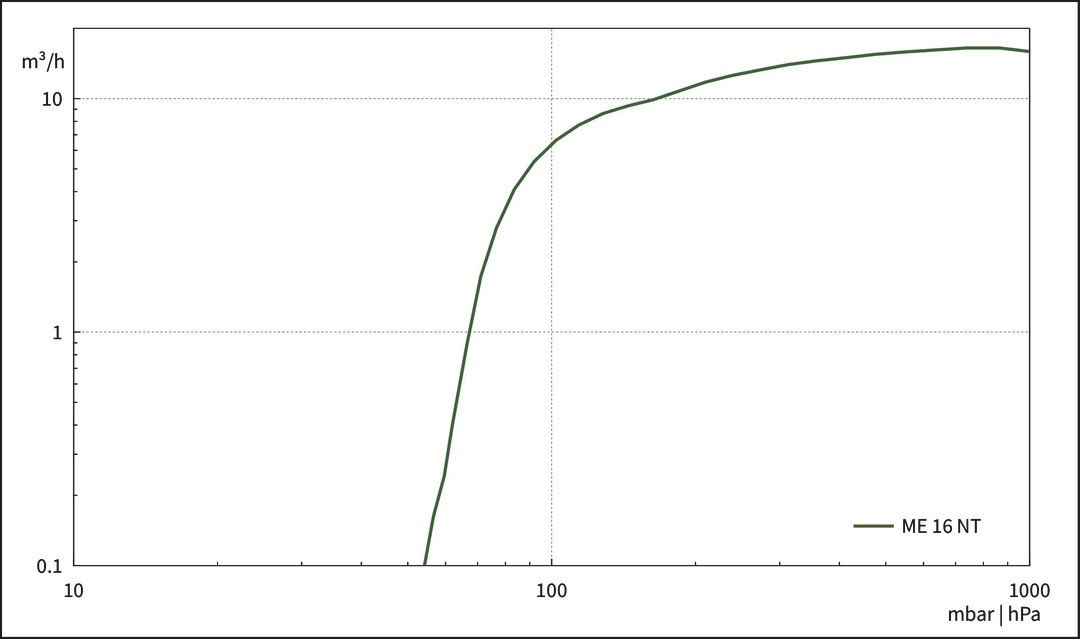

| Max. pumping speed 50 Hz | 16.4 m 3 /h |
| Max. pumping speed 60 Hz | 9.6 cfm |
| Ultimate vacuum | 70 mbar / 53 torr |
| Number of heads | 8 |
| Number of stages | 1 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 25 |
| Outlet connection | G1/2" |
| Rated motor power | 0.53 kW |
| Rated motor speed at 50/60 Hz | 1650 min -1 |
| Dimension L in mm | 554 mm |
| Dimension H in mm | 359 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 54 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | No |
| Rated mains voltage range 1 | 200-230 V |
| Mains frequency 1 | 50-60 Hz |
