MD 1 VARIO-SP
BrandTech Scientific
MD 1 VARIO-SP
SKU: 20696101
$3,748.00
MD 1 VARIO-SP from BRAND (BrandTech Scientific). contamination-free pumping and evacuation
The three-stage MD 1 VARIO-SP diaphragm pump, with its variable speed drive system, attains significantly higher pumping speed and a better ultimate vacuum than the corresponding fixed speed pump. The brushless 24V DC motor (maintenance-free) enables easy integration of the pump into other equipment, and operation independent of line voltage. The pump is extraordinarily silent and vibration-free, with an extended lifetime for its diaphragms.
Key Features
variable speed

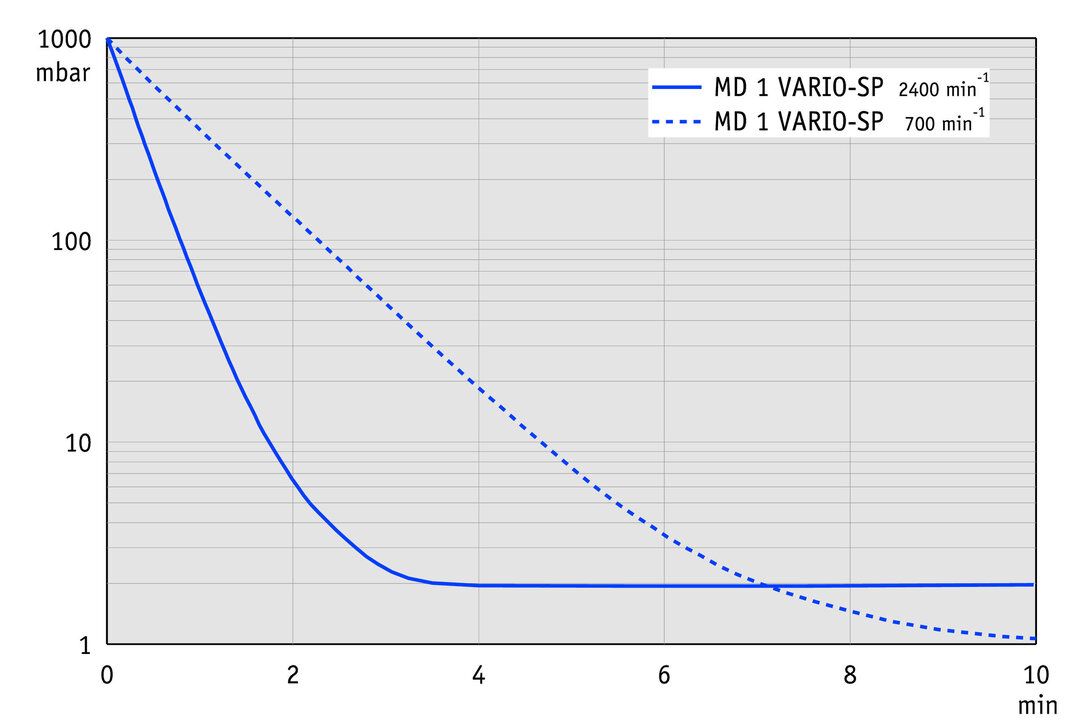

Fast pump down at high motor speed, with reduced speeds to maintain vacuum
Specifications
| Weight | 4.1 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, with 2 m cable without plug and with manual |
| Protection class IEC 60529 | IP 20 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

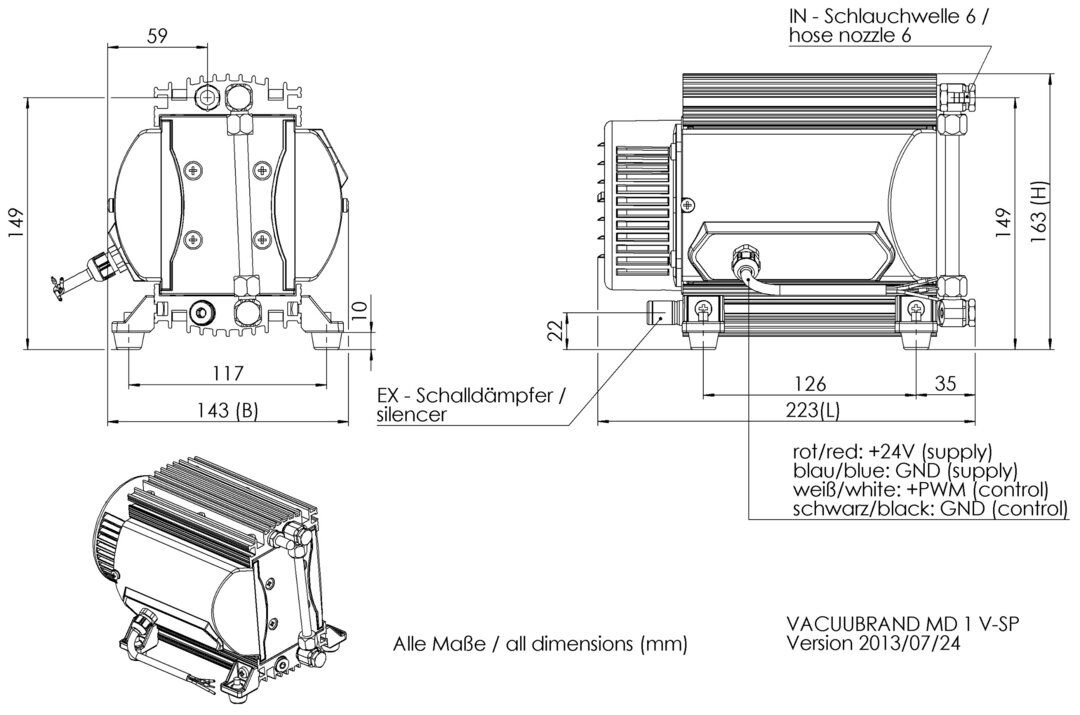

| Dimension B in mm | 143 mm |

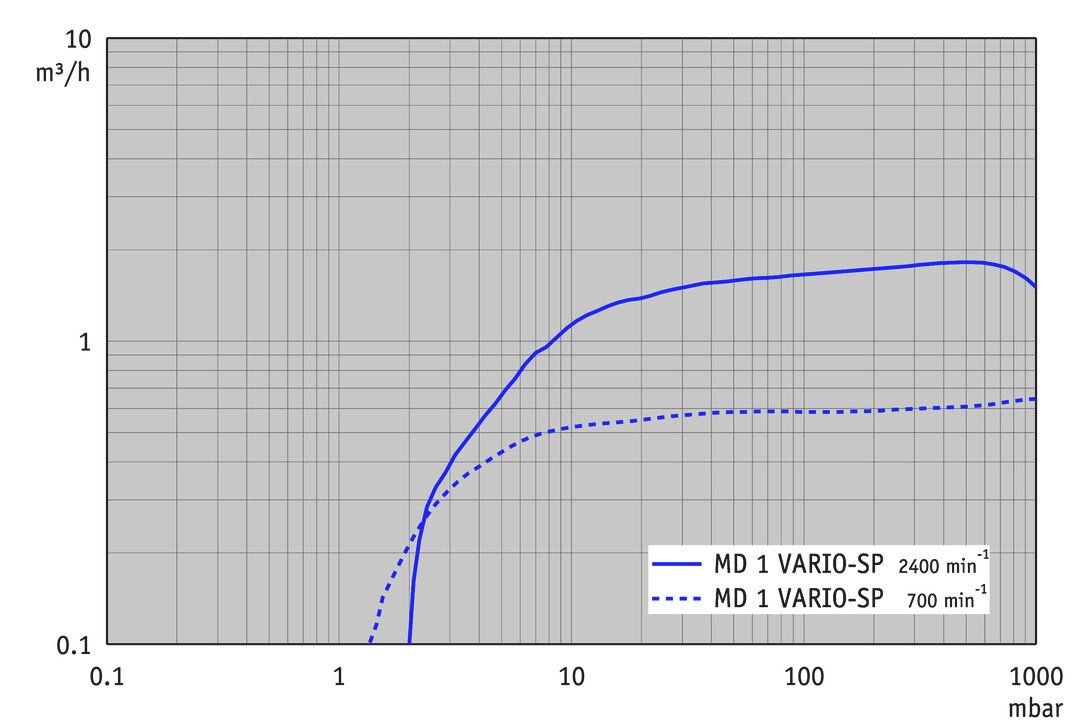

| Max. pumping speed 50 Hz | 1.8 m 3 /h |
| Max. pumping speed 60 Hz | 1.06 cfm |
| Ultimate vacuum | 1 mbar / 0.75 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 6 mm |
| Outlet connection | Silencer / G1/8" |
| Rated motor power | 0.064 kW |
| Dimension L in mm | 223 mm |
| Dimension H in mm | 163 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 37 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Rated mains voltage range 1 | 24 V |
| Mains frequency 1 | DC |
| Minimum motor speed VARIO in min -1 | 200 min -1 |
| Maximum motor speed VARIO in min -1 | 2400 min -1 |
