MD 1
BrandTech Scientific
MD 1
SKU: bt-p195
$3,871.00
MD 1 from BRAND (BrandTech Scientific). contamination-free pumping and evacuation
The MD 1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum. The three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps. The MD 1 is an ultra-low vibration pump with very long diaphragm lilfetime and stable ultimate vacuum documented with years of testing. With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the pumps are suitable for a wide range of applications with non-corrosive gases.
Key Features
Specifications
| Weight | 7.3 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Pump completely mounted, ready for use, with manual. |
| Protection class IEC 60529 | IP 40 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

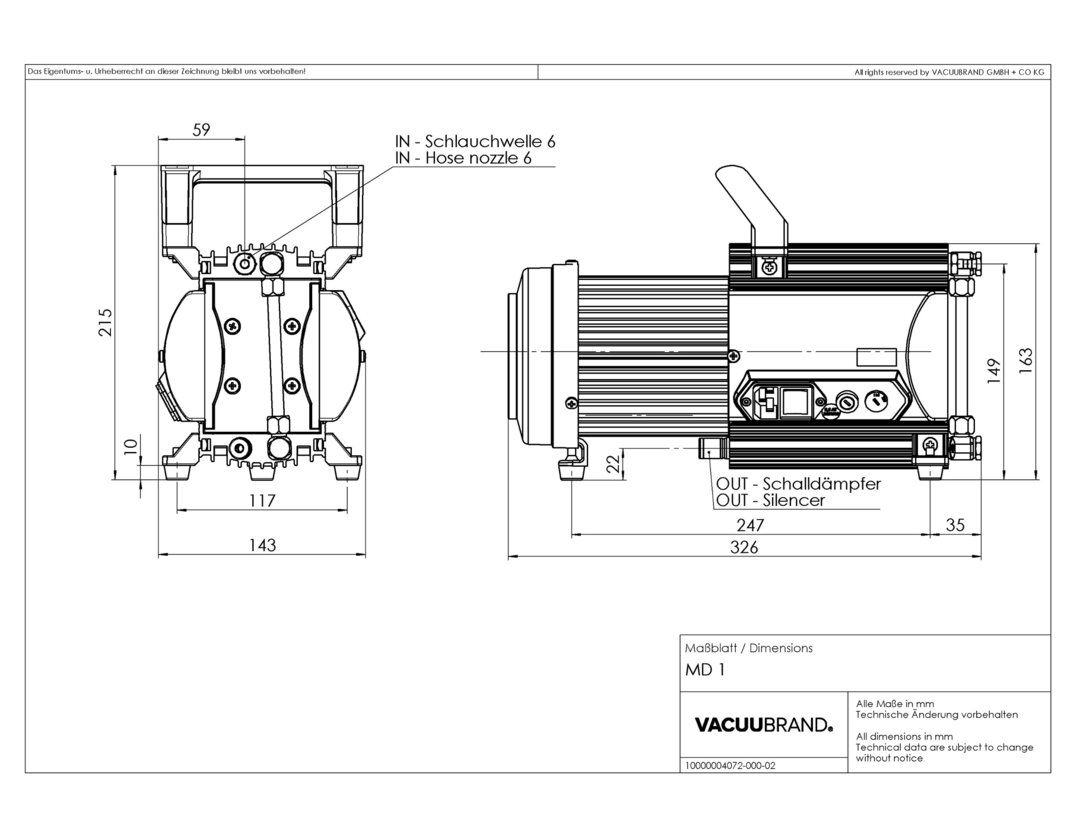

| Dimension B in mm | 143 mm |

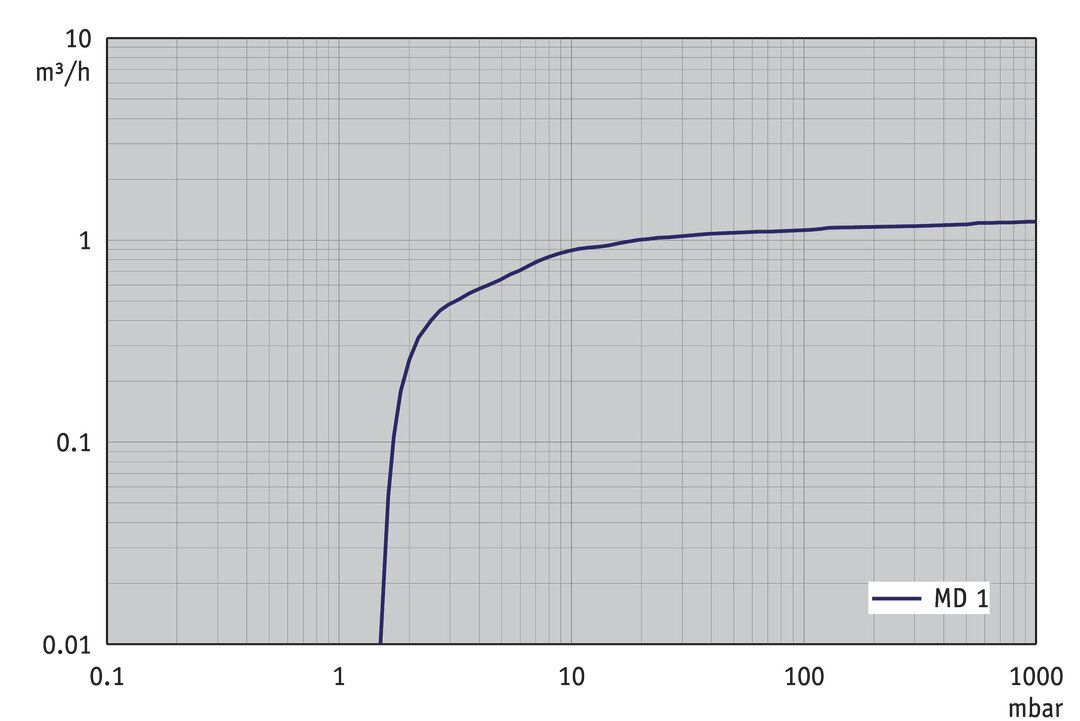

| Max. pumping speed 50 Hz | 1.2 m 3 /h |

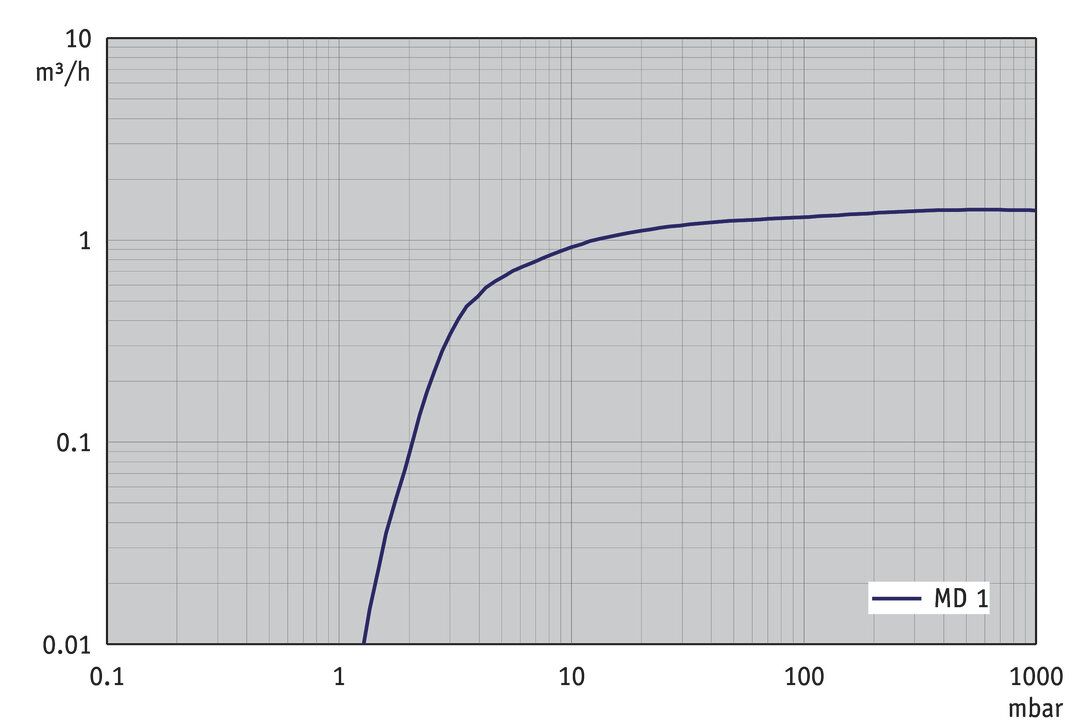

| Max. pumping speed 60 Hz | 0.82 cfm |
| Ultimate vacuum | 1.5 mbar / 1.1 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 6 mm |
| Outlet connection | Silencer / G1/8" |
| Rated motor power | 0.08 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min -1 |
| Dimension L in mm | 326 mm |
| Dimension H in mm | 215 mm |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 40 dBA |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Rated mains voltage range 1 | 220-230 V |
| Mains frequency 1 | 50-60 Hz |
| Rated mains voltage range 2 | 100-115 V |
| Rated mains voltage range 3 | 120 V |
| Mains frequency 2 | 50-60 Hz |
| Mains frequency 3 | 60 Hz |
