FO R 8/9/16
BrandTech Scientific
FO R 8/9/16
SKU: 20698017
$1,162.00
FO R 8/9/16. Oil mist filter FO R 8 / 9 / 16, outlet connection NW 25 KF Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of o…
Oil mist filter FO R 8 / 9 / 16, outlet connection NW 25 KF Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. VACUUBRAND oil mist filters separate nearly 100% of oil mist at the ultimate vacuum of the pump.
Key Features
Specifications
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Oil mist filter FO R 8 / 9 / 16, outlet connection KF DN 25. |

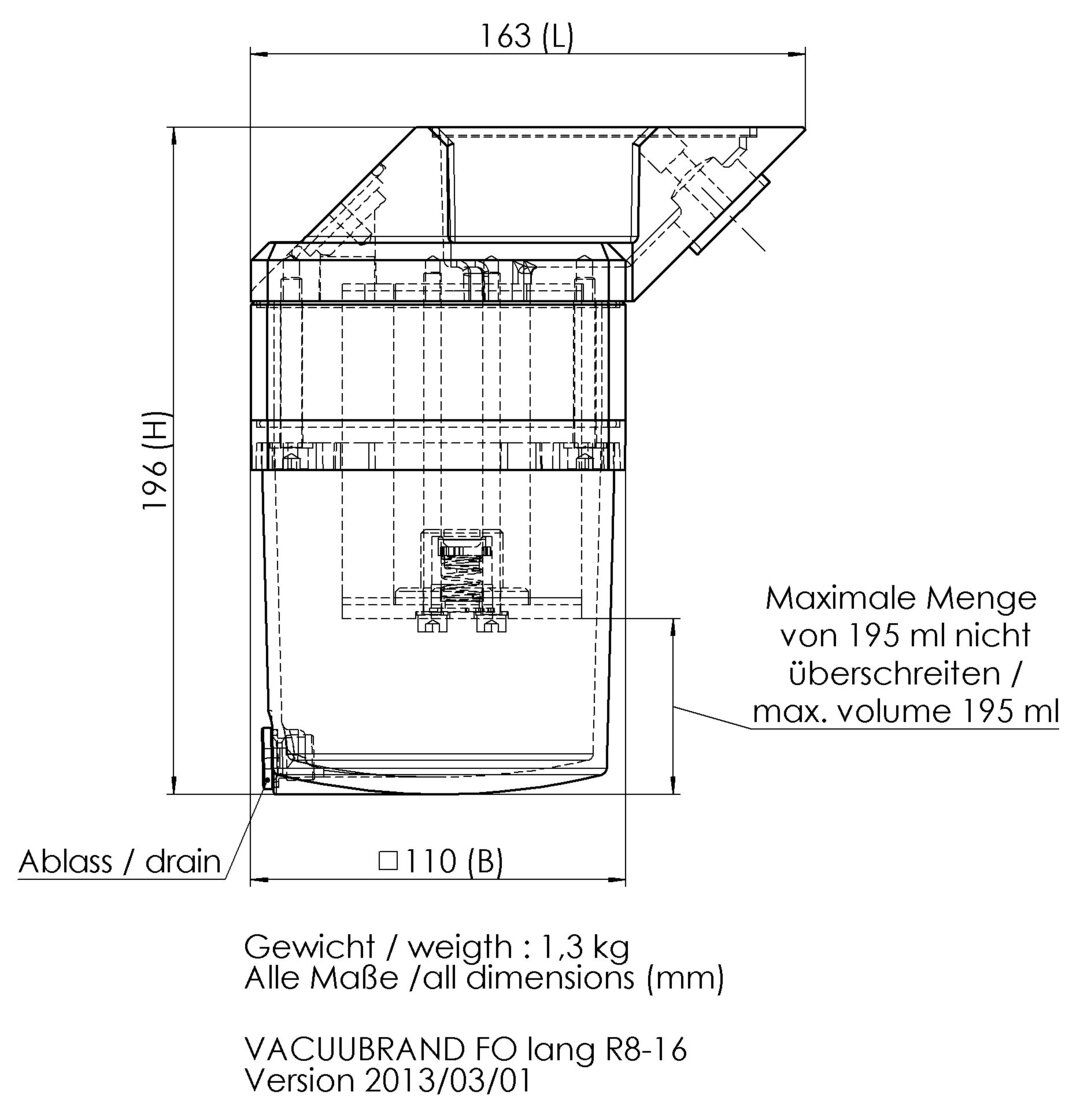

| Dimension B in mm | 110 mm |
| Inlet connection | small flange KF DN 25 |
| Outlet connection | directly mountable |
| Dimension L in mm | 163 mm |
| Dimension H in mm | 196 mm |
| Ambient temp., upper limit, in °C | 40 °C |
| Ambient temp., lower limit, in °C | 10 °C |
| For VACUUBRAND pumps | RE 8, RZ 8, RE 9, RZ 9, RE 16, RZ 16 |
| Volume catchpot | 195 ml |
| Permissible volume flow rate | 20 m 3 /h |
