FO R 2/2.5/5/6
BrandTech Scientific
FO R 2/2.5/5/6
SKU: 20698003
$938.00
FO R 2/2.5/5/6 from BRAND (BrandTech Scientific). very high degree of separation
Oil mist filter FO R 2 / 2.5 / 5 / 6 Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. VACUUBRAND oil mist filters separate nearly 100% of oil mist at the ultimate vacuum of the pump.
Key Features
Specifications
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Oil mist filter FO R 2 / 2.5 / 5 / 6 |

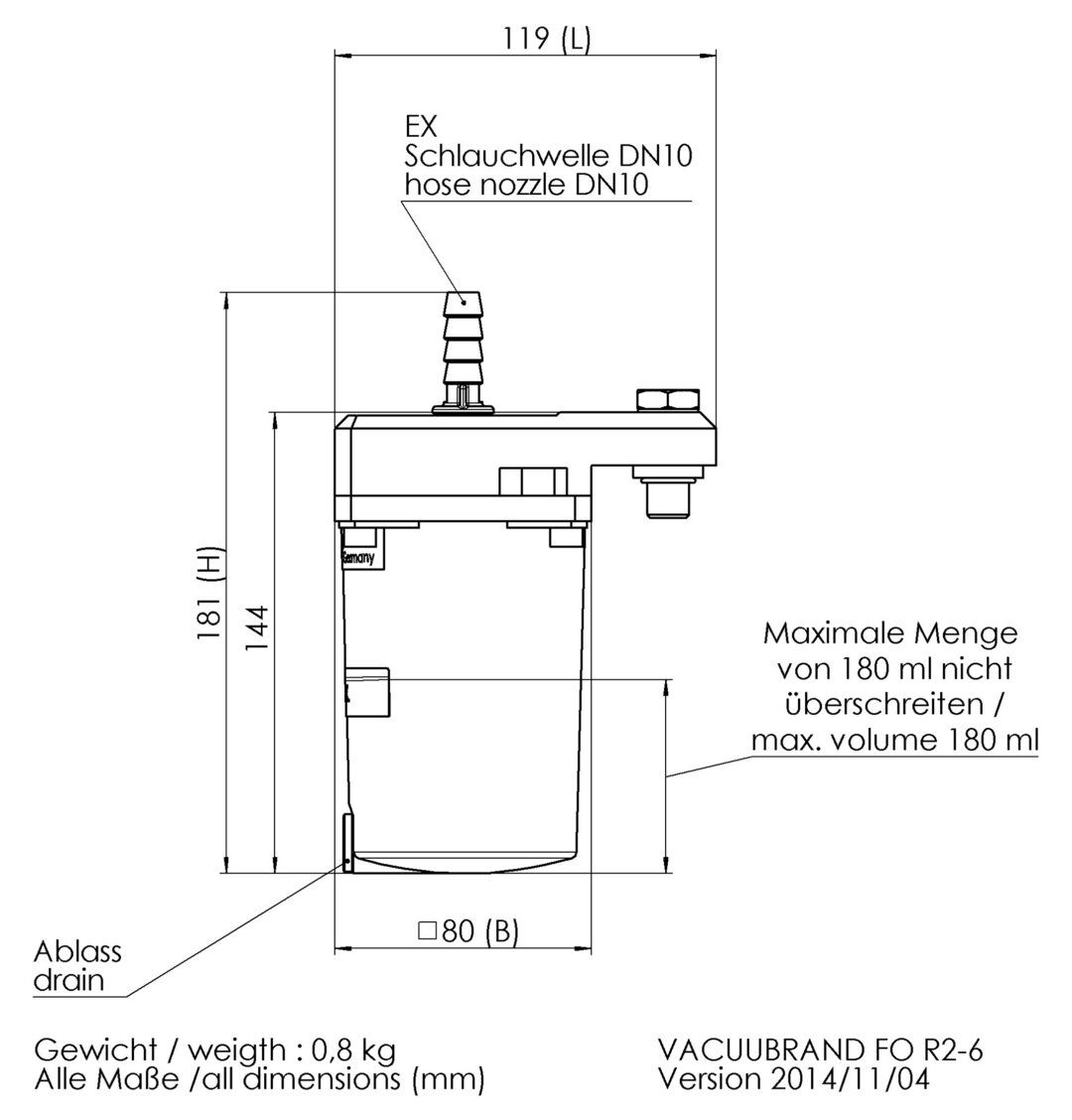

| Dimension B in mm | 80 mm |
| Inlet connection | Hose nozzle DN 10 mm |
| Outlet connection | directly mountable |
| Dimension L in mm | 119 mm |
| Dimension H in mm | 181 mm |
| Ambient temp., upper limit, in °C | 40 °C |
| Ambient temp., lower limit, in °C | 10 °C |
| For VACUUBRAND pumps | RE 2, RZ 2, RE 2.5, RZ 2.5, RE 5, RZ 5, RE 6, RZ 6 |
| Volume catchpot | 180 ml |
| Permissible volume flow rate | 6 m 3 /h |
