CVC 3000 detect
CVC 3000 detect
The CVC 3000 detect is a ready to use two-set-point vacuum controller - available both as bench-top device and as a unit designed for attaching to a lab scaffold. It consists of the vacuum controller CVC 3000 with integrated ceramic vacuum sensor and venting valve that forms together with a non-return valve and the chemically resistant solenoid valve a very compact and easy to install unit for vacuum control. The electronic vacuum control increases the process efficiency and decisively improves the solvent recovery for existing vacuum sources like oil-free vacuum pumps or vacuum networks. In the “detect” mode the controller does approach and detect the boiling pressure and switches to the two-point vacuum control mode by itself. Manual settings are possible at any time during current operation.
Key Features
Specifications
| Weight | 1.5 kg |
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Vacuum controller CVC 3000 detect bench-top device, complete with vacuum solenoid valve, non-return valve, integrated ceramic diaphragm vacuum sensor and venting valve. With power supply, ready to use, with manual |
| Protection class IEC 60529 | IP 20 |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (operation) | 10 °C |

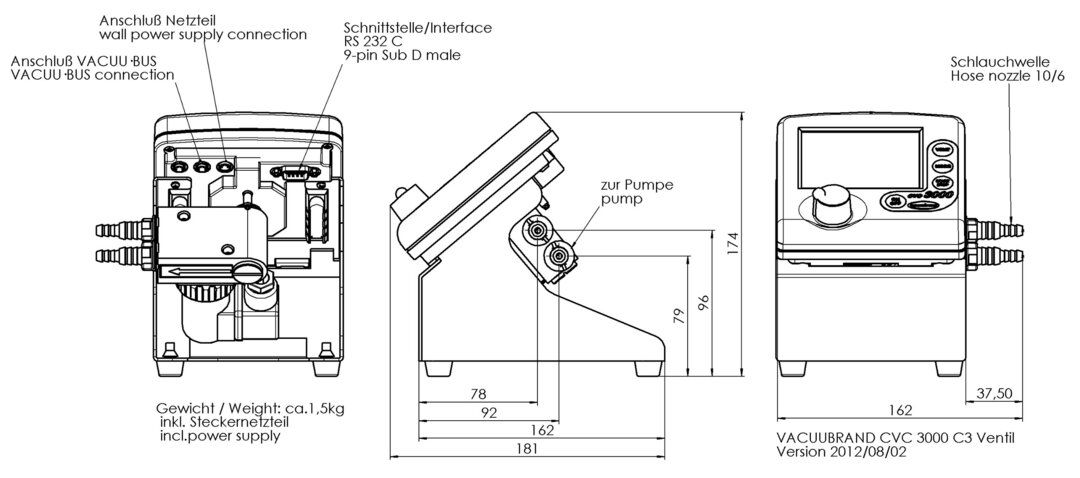

| Dimension B in mm | 162 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Dimension L in mm | 181 mm |
| Dimension H in mm | 174 mm |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only |
| NRTL certification | Yes |
| Interface | RS 232C |
| Upper measuring limit in mbar/hPa | 1080 mbar |
| Upper measuring limit in torr | 810 torr |
| Lower measuring limit in mbar/hPa | 0.1 |
| Lower measuring limit in torr | 0.1 torr |
| Upper control limit in mbar / hPa | 1060 mbar |
| Upper control limit in torr | 795 torr |
| Lower control limit in mbar / hPa | 0.1 mbar |
| Lower control limit in torr | 0.1 torr |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr |
| Vacuum sensor | Integr. |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K mbar/hPa/torr /K |
| Vacum connection | Hose nozzle DN 6/10 mm |
| Venting valve | Integrated, hose nozzle DN 4-5 mm |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class UL50E | Type 1 |
| Protection class front side IEC 60529 | IP 42 |
| Max. current for VACUU BUS (24V DC) | 4 A |
| Cable length connection in m | 2 m |
