Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M

Whether you are dispensing solvents, acids, alkalis or saline solutions – the Dispensette® S bottle-top dispenser makes it easy, safe and efficient. With both the Dispensette® S and Dispensette® S Organic, you will always have the right dispenser at hand for a wide range of media. For efficient volume adjustment, you can choose between digital and analog adjustment, or fixed volume. Do you dispense long series, sterile applications or moisture-sensitive media? With numerous accessory options, the Dispensette® S also offers efficient solutions for special applications. Dispensette® S Organic (yellow color-code): Ideal for dispensing organic solvents, including chlorinated and fluorinated hydrocarbons (e.g., trichlorofluoroethane and dichlormethane), acids like concentrated HCl and HNO3 (except HF), trifluoroacetic acid (TFA), tetrahydrofuran (THF) and peroxides. Fixed-volume Model: For standard applications. Simple calibration adjustment with a supplied tool. Limitations of use: Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent Vapor pressure up to max. 600 mbar. Aspirate slowly above 300 mbar, in order to prevent the liquid from boiling Kinematic viscosity up to 500 mm² /s (dynamic viscosity [mPas] = kinematic viscosity [mm² /s] x density [g/cm³) Density up to 2.2 g/cm³

Key Features

Simple
Wide range of applications for organic solvents, acids, alkalis and saline solutions.
Easy
Minimum operating forces, maximum comfort.
Efficient
Reliable in challenging continuous operation and with aggressive media.
Showing 4 models
BrandTech Scientific

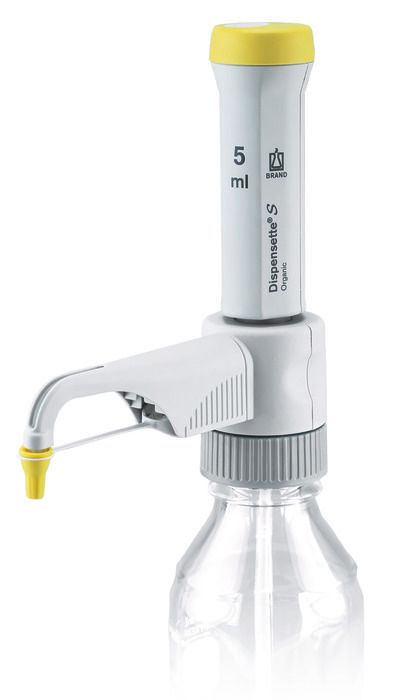

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 5 ml

SKU: 4630230
$712.00
View Product
BrandTech Scientific

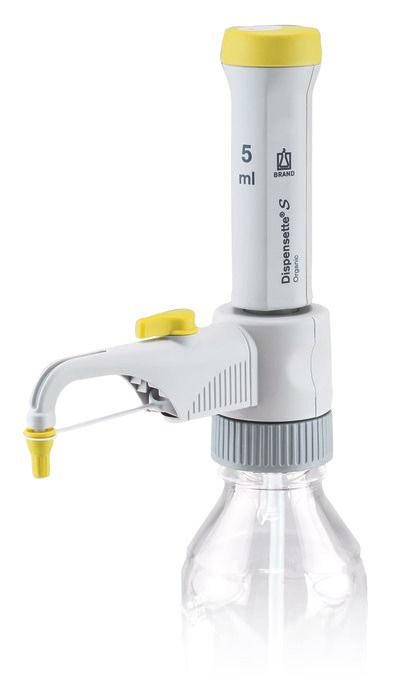

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 5 ml

SKU: 4630231
$757.20
View Product
BrandTech Scientific

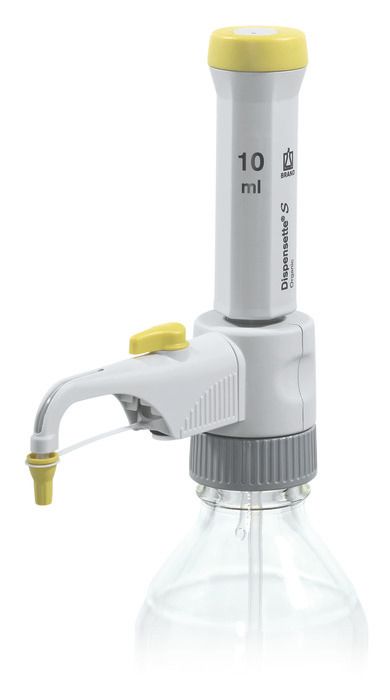

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 10 ml

SKU: 4630240
$712.00
View Product
BrandTech Scientific

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 10 ml

SKU: 4630241
$757.20
View Product
×

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 5 ml Specifications

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Manufacturer BRAND (BrandTech Scientific)
Volume Range 5 ml
Accuracy in % (±) 0.5 %
Accuracy in µl (±) 25 μl
Coefficient of Variation (%) 0.1 %
Coefficient of Variation (µl) 5 μl
Recirculation valve without
Adapter for bottle thread GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40
Filling tube length 125-240 mm
×

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 5 ml Specifications

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Manufacturer BRAND (BrandTech Scientific)
Volume Range 5 ml
Accuracy in % (±) 0.5 %
Accuracy in µl (±) 25 μl
Coefficient of Variation (%) 0.1 %
Coefficient of Variation (µl) 5 μl
Recirculation valve with
Adapter for bottle thread GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40
Filling tube length 125-240 mm
×

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 10 ml Specifications

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Manufacturer BRAND (BrandTech Scientific)
Volume Range 10 ml
Accuracy in % (±) 0.5 %
Accuracy in µl (±) 50 μl
Coefficient of Variation (%) 0.1 %
Coefficient of Variation (µl) 10 μl
Recirculation valve without
Adapter for bottle thread GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40
Filling tube length 125-240 mm
×

Bottle-top dispensers Dispensette® S Organic, fixed-volume, DE-M — 10 ml Specifications

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Manufacturer BRAND (BrandTech Scientific)
Volume Range 10 ml
Accuracy in % (±) 0.5 %
Accuracy in µl (±) 50 μl
Coefficient of Variation (%) 0.1 %
Coefficient of Variation (µl) 10 μl
Recirculation valve with
Adapter for bottle thread GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40
Filling tube length 125-240 mm

In the Box

  • Dispensette ® S bottle-top dispenser
  • for threaded bottles GL 45
  • DE-M marking
  • with performance certificate
  • telescoping filling tube
  • recirculation valve
  • recirculation tube (optional)
  • mounting tool
  • adapters of polypropylene (Nominal volume: 1
  • 2
  • 5
  • 10ml: GL 24-25
  • GL 28/S28
  • GL 32-33
  • GL38
  • S40 / Nominal volume 25
  • 50
  • 100ml: GL 32-33
  • GL38
  • S40)
