AK for RE/RZ 5/6/2.5
BrandTech Scientific
AK for RE/RZ 5/6/2.5
SKU: 20698006
$995.20
AK for RE/RZ 5/6/2.5 from BRAND (BrandTech Scientific). direct mounting at the inlet, compact and leak-tight
Separator AK for RE/RZ 5 and RE/RZ 6 and RE/RZ 2.5 Separators at the inlet protect pumps from particulates and droplets which may shorten service intervals and even reduce the lifetime and the operating performance of oil-sealed rotary vane pumps.
Key Features
Note for RE/RZ 2.5
For rotary vane pumps RE 2.5 with article no. 2069715x and RZ 2.5 with article no. 2069812x order separator 20698000.
Specifications
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Separator AK for RE/RZ 5/6/2.5. |

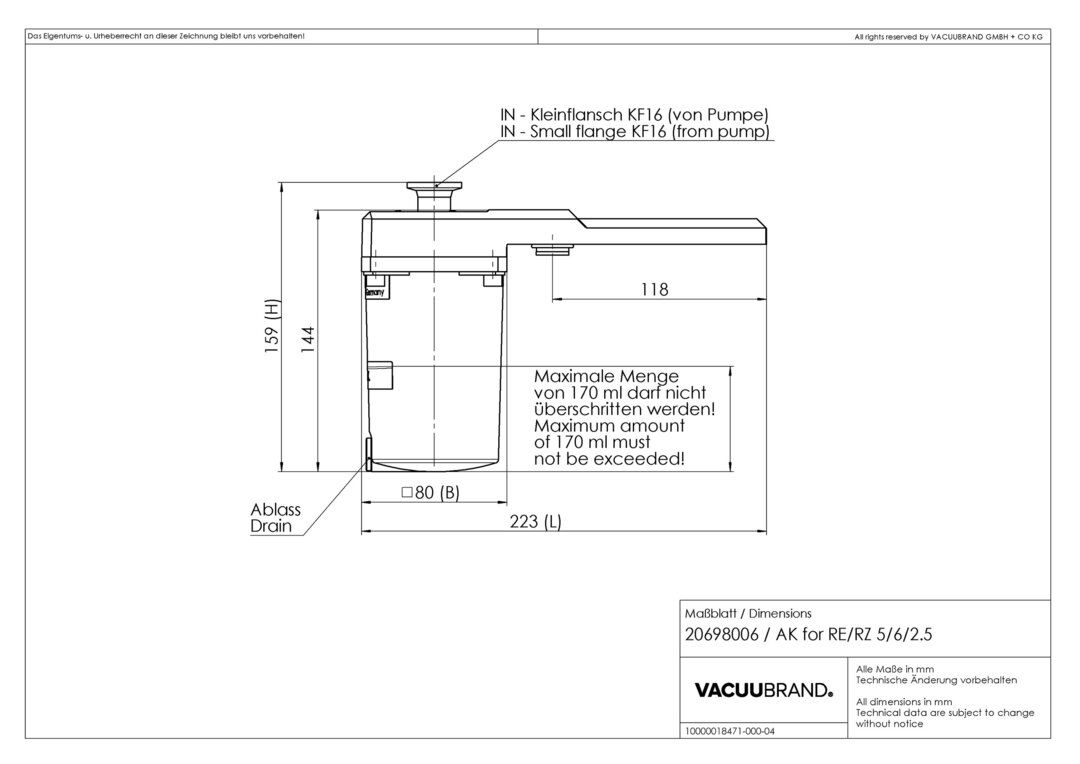

| Dimension B in mm | 80 mm |
| Inlet connection | directly mountable |
| Outlet connection | small flange KF DN 16 |
| Dimension L in mm | 223 mm |
| Dimension H in mm | 159 mm |
| Ambient temp., upper limit, in °C | 40 °C |
| Ambient temp., lower limit, in °C | 10 °C |
| For VACUUBRAND pumps | RE 5, RZ 5, RE 6, RZ 6, RE 2.5 (2079715x), RZ 2.5 (2079812x) |
| Volume catchpot | 250 ml |
