AK for RE/RZ 2/2.5
BrandTech Scientific
AK for RE/RZ 2/2.5
SKU: 20698000
$675.00
AK for RE/RZ 2/2.5 from BRAND (BrandTech Scientific). direct mounting at the inlet, compact and leak-tight
Separator AK for RE/RZ 2 and RE/RZ 2.5 Separators at the inlet protect pumps from particulates and droplets which may shorten service intervals and even reduce the lifetime and the operating performance of oil-sealed rotary vane pumps.
Key Features
Specifications
| Manufacturer | BRAND (BrandTech Scientific) |
| Items supplied | Separator AK for RE/RZ 2/2.5. |

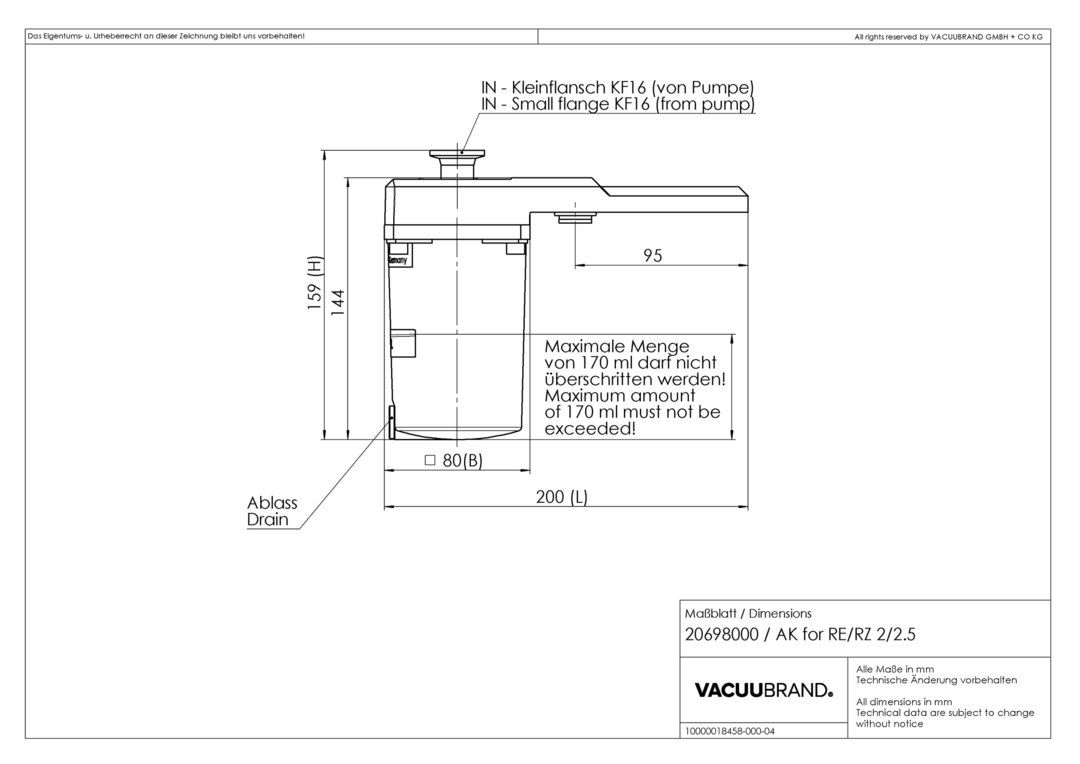

| Dimension B in mm | 80 mm |
| Inlet connection | directly mountable |
| Outlet connection | small flange KF DN 16 |
| Dimension L in mm | 200 mm |
| Dimension H in mm | 159 mm |
| Ambient temp., upper limit, in °C | 40 °C |
| Ambient temp., lower limit, in °C | 10 °C |
| For VACUUBRAND pumps | RE 2, RZ 2, RE 2.5 (2069715x), RZ 2.5 (2069812x) |
| Volume catchpot | 250 ml |
